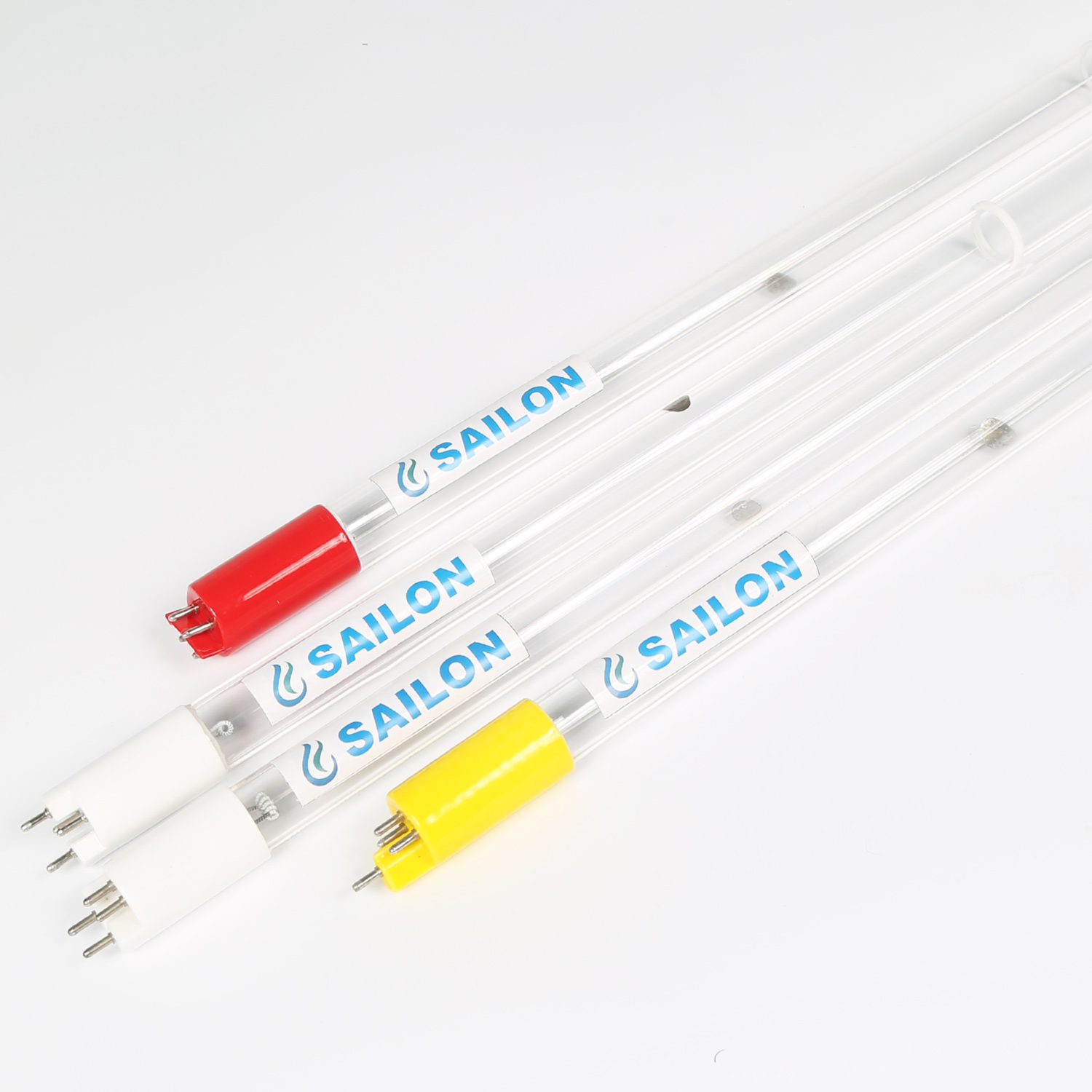

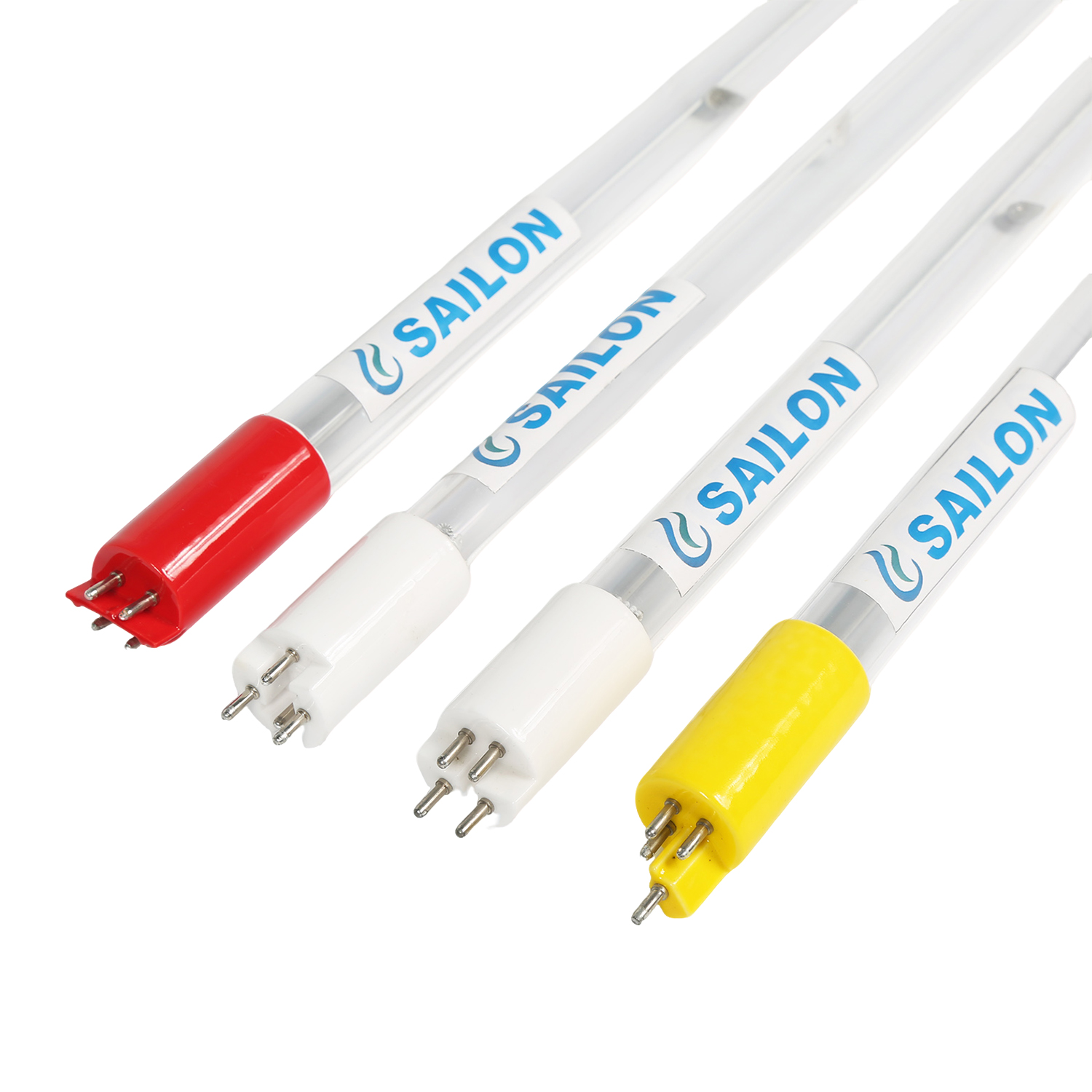

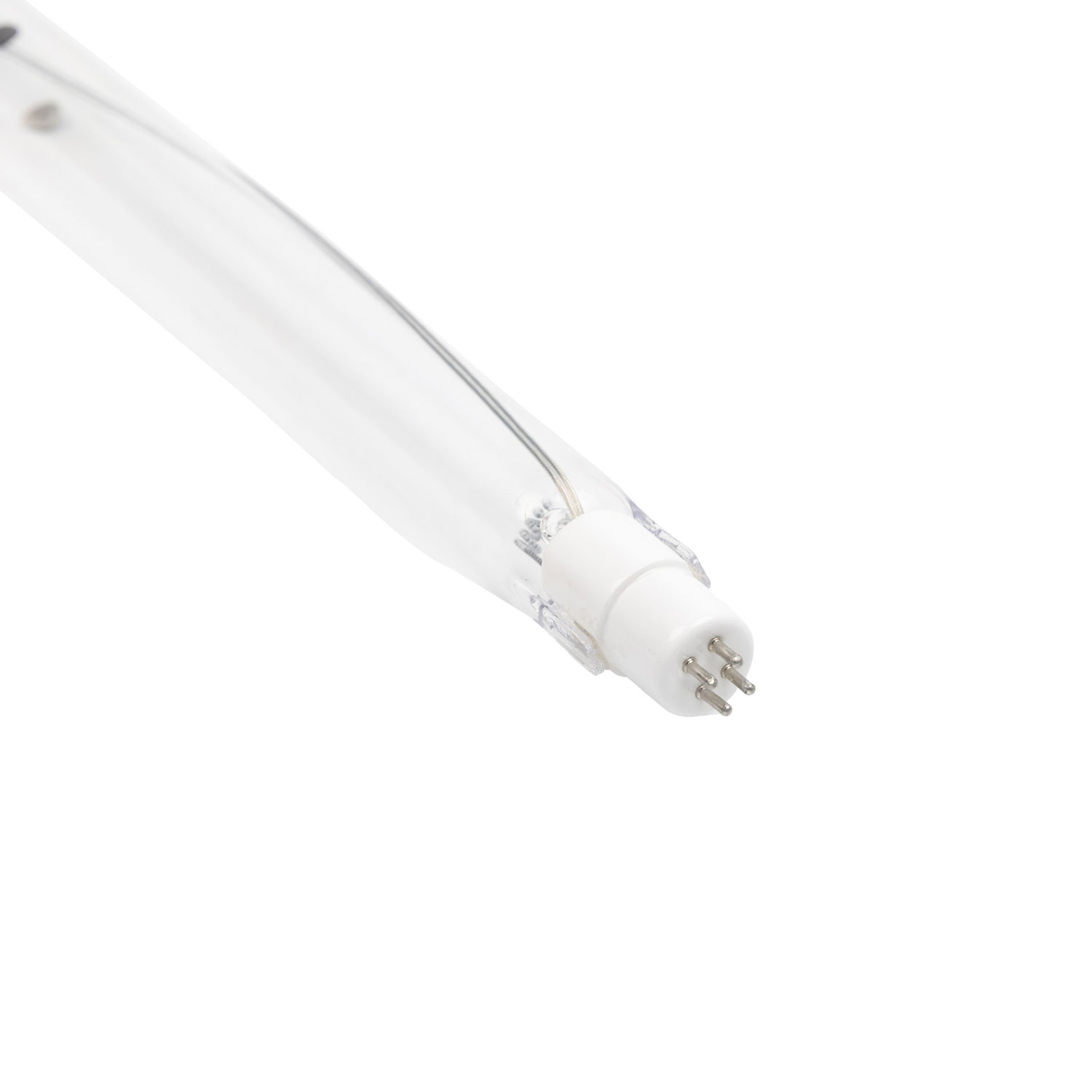

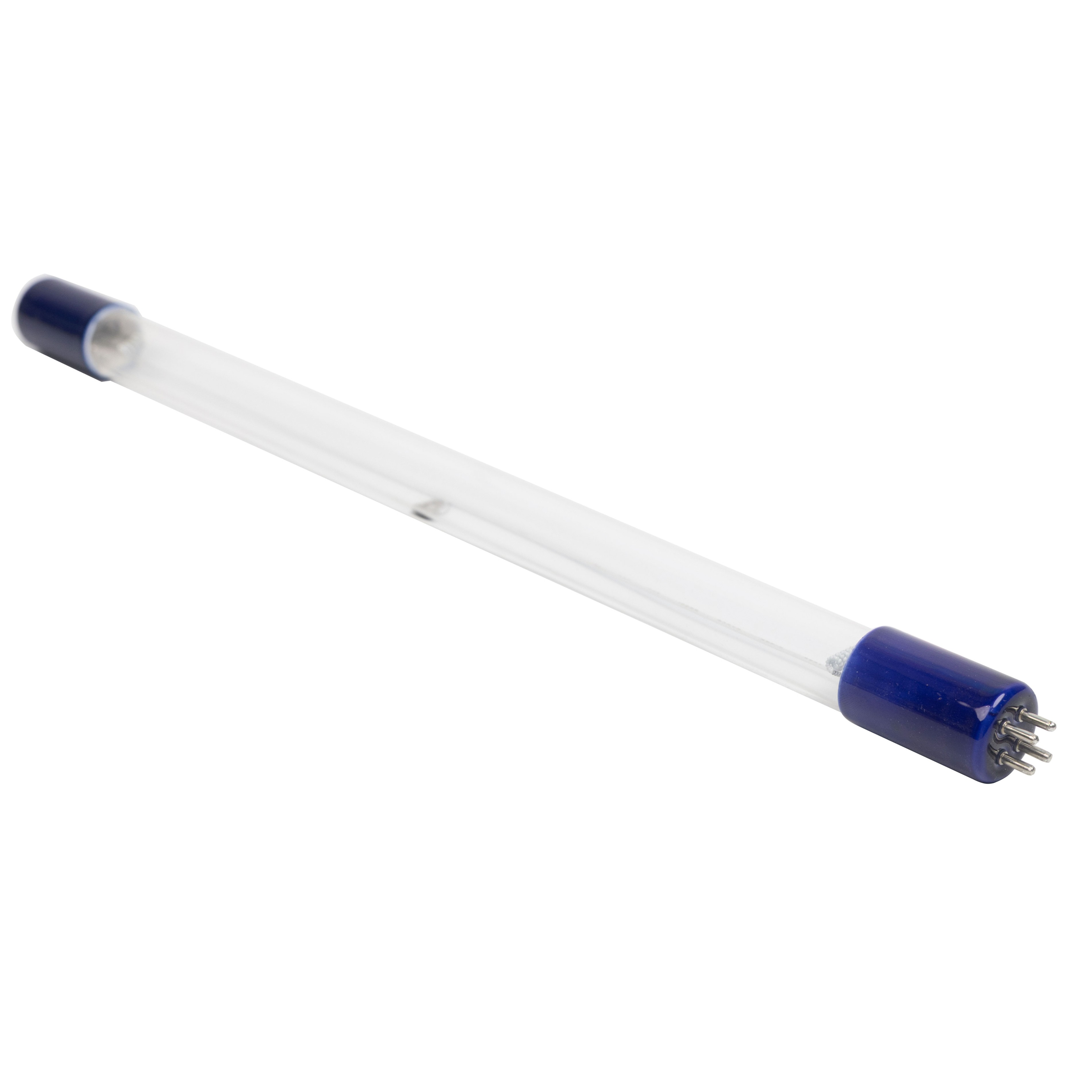

The Amalgam Germicidal Lamp is a high-efficiency UV-C lamp designed for water and air disinfection systems. Using amalgam technology, it delivers strong and stable 254nm UV-C output for effective elimination of bacteria, viruses, and algae without chemicals. Compared with standard UV lamps, it offers higher intensity, better temperature resistance, and longer service life. It is widely used in drinking water treatment, wastewater systems, swimming pools, aquarium sterilizers, and industrial UV disinfection applications, providing a reliable and cost-effective UV sterilization solution.

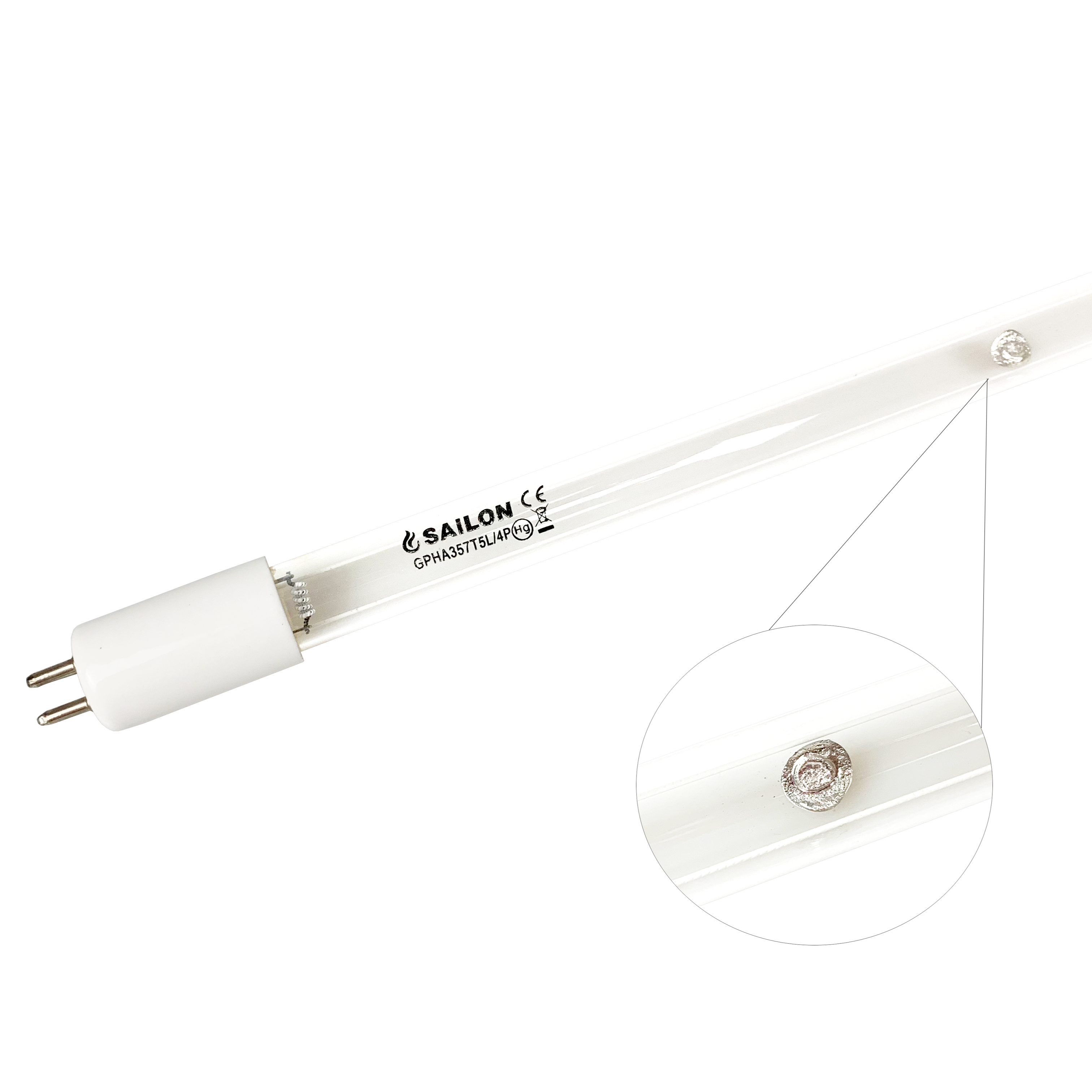

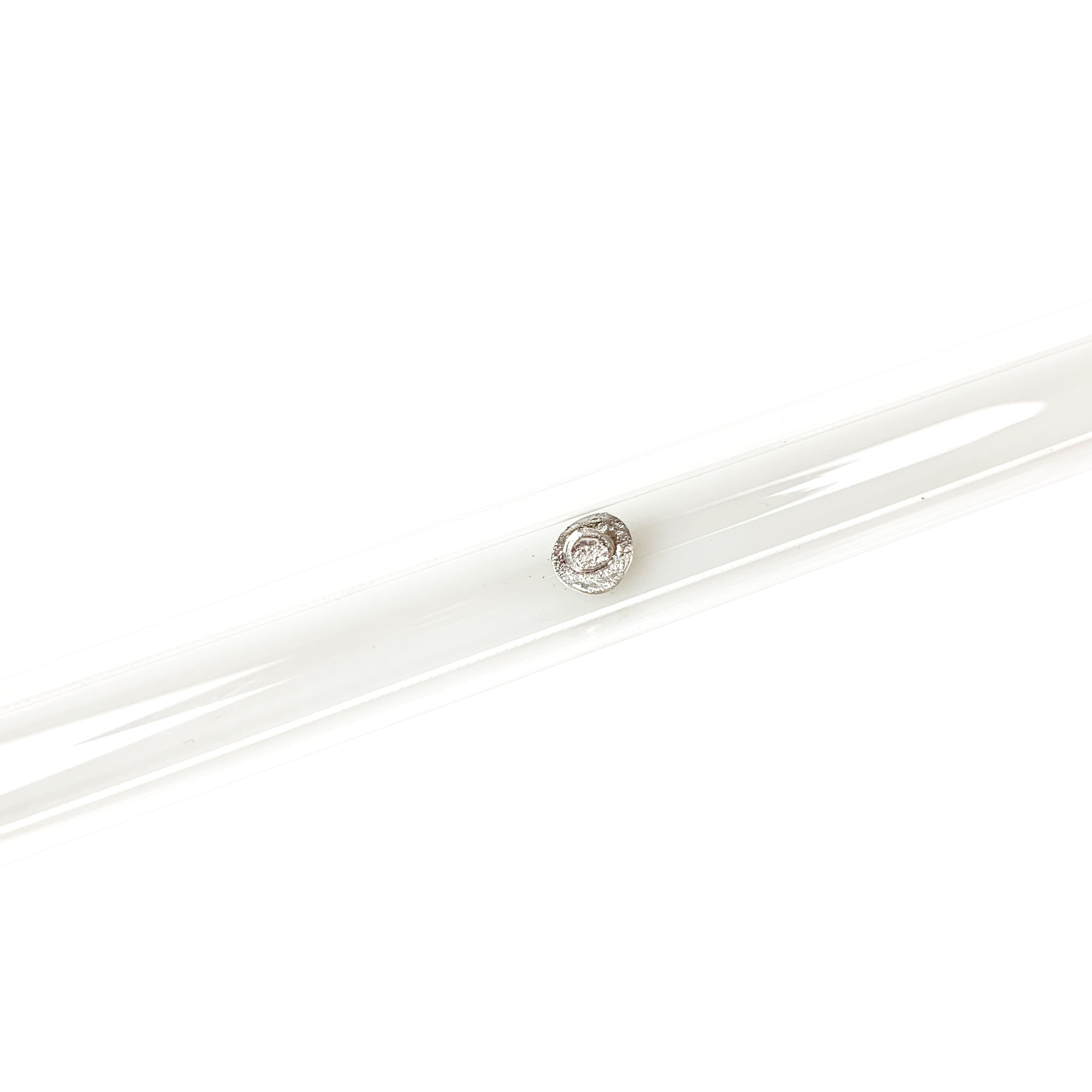

1. Amalgam UV Technology with High Output Stability
The Amalgam Germicidal Lamp uses advanced amalgam UV technology to deliver strong and stable 254nm UV-C output. Compared with standard mercury UV lamps, it provides up to 2–3 times higher UV intensity and maintains consistent performance under varying temperature conditions, ensuring reliable UV water disinfection and air sterilization efficiency.
2. High UV-C Efficiency for 99% Disinfection Rate
This UV-C germicidal lamp achieves up to 99% microbial inactivation efficiency, effectively eliminating bacteria, viruses, algae, and harmful microorganisms at the DNA level. It is widely used in UV water treatment systems, UV disinfection reactors, and industrial purification equipment requiring high sterilization performance.
3. Excellent Temperature Resistance & Long Lifespan
Thanks to amalgam technology, the lamp maintains stable UV output even under high or low operating temperatures. The service life can reach up to 12,000–13,000 hours, significantly reducing replacement frequency and maintenance costs. It is ideal for continuous operation in demanding environments such as wastewater treatment and industrial UV systems.
4. High-Power Design for Large-Scale Water Treatment
Designed for high-power UV applications, the Amalgam Germicidal Lamp provides strong penetration and wide irradiation coverage. It is suitable for large-capacity UV water treatment systems, municipal water purification, swimming pool disinfection, and aquaculture systems, ensuring efficient and uniform sterilization performance.
5. Wide Industrial Applications & Reliable Performance
This UV-C lamp is widely used in drinking water treatment, wastewater disinfection, swimming pools, aquaculture systems, aquarium sterilizers, and HVAC air purification systems. As a core component of UV disinfection systems, it provides chemical-free, eco-friendly, and cost-effective sterilization for industrial and commercial applications.
Type | Tube
Diameter
(mm) | Length
(mm) | Power
(W) | Current
( m A) | Voltage
(V) | UVOutput
At 1M
(uw/cm²) (W) | Long
Life
(h) |
T5≈Tube Diameter 15mm |
GPHA357T5L | 15 | 357 | 42 | 1.2 | 36 | 110 | 11 | 13000 |
GPHA843T5L | 15 | 843 | 105 | 1.2 | 88 | 320 | 35 | 13000 |
GPHA1000T5L | 15 | 1000 | 127 | 1.2 | 107 | 370 | 42 | 13000 |
GPHA1148T5L | 15 | 1148 | 150 | 1.2 | 130 | 395 | 54 | 13000 |
GPHA1554T5L | 15 | 1554 | 190 | 1.2 | 164 | 500 | 68 | 13000 |
T6≈Tube Diameter 19mm |
GPHA357T6L | 19 | 357 | 57 | 1.8 | 32 | 130 | 13 | 13000 |
GPHA843T6L | 19 | 843 | 130 | 1.8 | 71 | 400 | 43 | 13000 |
GPHA1000T6L | 19 | 1000 | 150 | 1.8 | 84 | 460 | 52 | 13000 |
GPHA1148T6L | 19 | 1148 | 180 | 1.8 | 102 | 550 | 64 | 13000 |
GPHA1554T6L | 19 | 1554 | 240 | 1.8 | 134 | 600 | 84 | 13000 |
GPHHA357T6L | 19 | 357 | 65 | 2.1 | 31 | 140 | 14 | 13000 |
GPHHA843T6L | 19 | 843 | 172 | 2.1 | 82 | 490 | 54 | 13000 |
GPHHA1000T6L | 19 | 1000 | 207 | 2.1 | 99 | 570 | 65 | 13000 |
GPHHA1145T6L | 19 | 1145 | 240 | 2.1 | 115 | 600 | 84 | 13000 |
GPHHA1554T6L | 19 | 1554 | 320 | 2.1 | 154 | 750 | 105 | 13000 |
T8≈Tube Diameter 25mm |
GPHHA1510T8L | 25 | 1510 | 250 | 3.1 | 83 | 650 | 90 | 13000 |
T10≈Tube Diameter 32mm |
GXA1500T10L | 32 | 1500 | 270 | 3.8 | 75 | 650 | 93 | 13000 |
GPHA1515T10L | 32 | 1515 | 270 | 3.8 | 75 | 650 | 93 | 13000 |
GPHHA1515T10L | 32 | 1515 | 330 | 3.8 | 84 | 850 | 110 | 13000 |
GPHHA1310T10L | 32 | 1310 | 400 | 5 | 82 | 1050 | 130 | 13000 |
GPHHA1554T10L | 32 | 1554 | 500 | 5.5 | 90 | 1300 | 165 | 13000 |
1. Drinking Water Treatment
The Amalgam Germicidal Lamp is widely used in UV water treatment systems. It provides strong 254nm UV-C disinfection to effectively eliminate bacteria and viruses without chemicals, ensuring safe and clean drinking water.
2. Wastewater Treatment
Ideal for industrial and municipal wastewater disinfection systems. It delivers high UV output for efficient microbial inactivation before water discharge or reuse, helping meet environmental standards.
3. Swimming Pool & Aquaculture
Used in swimming pools and aquaculture systems to remove algae, bacteria, and organic contaminants. It improves water quality and reduces the need for chemical treatment.
4. HVAC Air Sterilization
Suitable for HVAC air purification systems, reducing airborne bacteria, viruses, and mold spores. It improves indoor air quality in commercial and industrial environments.
1. What certifications does this UV lamp have?
The UV Germicidal Lamp is certified with CE, ISO9001, and RoHS, ensuring compliance with international safety, quality, and environmental standards for reliable use in water and air disinfection systems.
2. What payment methods are available?
We support T/T (bank transfer) and Western Union. These secure and widely used payment methods make international transactions simple and efficient for global customers.
3. What is the warranty period?
This UV-C lamp comes with a 1-year warranty under normal operating conditions. Any manufacturing defects during this period will be fully supported with after-sales service.
4. Is it compatible with different systems?
Yes, it is compatible with most UV water treatment and air sterilization systems. Proper wattage and size selection are required to ensure optimal UV-C disinfection performance.
