Electronic Ballast is a key component designed to drive and control UV lamps with high efficiency and stability. It provides reliable starting modes (pre-heat or instant start) and ensures consistent current output, improving lamp performance and lifespan. Compatible with various UV lamp powers (10W–500W), it supports a wide input voltage range and energy-efficient operation. With stable performance, low power consumption, and compact design, it is widely used in UV sterilization systems, water treatment equipment, and industrial UV disinfection applications, ensuring safe and efficient lamp operation.
1. Wide Compatibility & Stable Output
This electronic ballast supports a wide input voltage range (e.g., 99–264V) and multiple lamp powers from 10W to 500W. It delivers stable current output, ensuring reliable performance in UV sterilization systems, UV lamp power supply units, and industrial UV disinfection equipment.
2. Flexible Start Modes (Pre-heat & Instant Start)
Designed with both pre-heat and instant start options, this UV electronic ballast adapts to different lamp types and applications. It improves ignition efficiency, reduces startup stress, and enhances overall performance in UV germicidal lamp systems.
3. Energy-Efficient & High Power Factor
With a high power factor (≥0.9–0.98), this energy-saving electronic ballast reduces power consumption and improves system efficiency. It is ideal for UV water treatment systems and long-term industrial use, helping lower operating costs.
4. Enhanced Lamp Lifespan & Protection
The ballast ensures controlled current and stable operation, reducing lamp flicker and extending UV lamp lifespan. Built-in protection features improve safety and reliability in UV lamp control systems and water disinfection equipment.
5. Compact Design & Easy Integration
Its compact and lightweight design allows easy installation in various equipment, including water sterilizers and air purification units. This UV ballast driver is widely used in commercial UV disinfection systems and industrial applications.
Type | Input Voltage
(V) | Input Current
( A) | UV qty
(PCS) | Lamp Power
(W ) | Lamp Current
(A) | Start Mode |
|
|
10W-24W |
PH12-180-10 | 198-264V | 0.08@230V | >0.5 | 10 | 0.15-0.18 | Pre-heat |
PW3-425-18A | 99-132V | 0.3@120V | >0.55 | 18 | 0.35-0.43 | Pre-heat |
PW3-425-18 | 198-264V | 0.16@230V | >0.55 | 18 | 0.35-0.43 | Pre-heat |
PH12-350-24 | 198-264V | 0.21@230V | >0.55 | 24 | 0.30-0.35 | Pre-heat |
25W-105W |

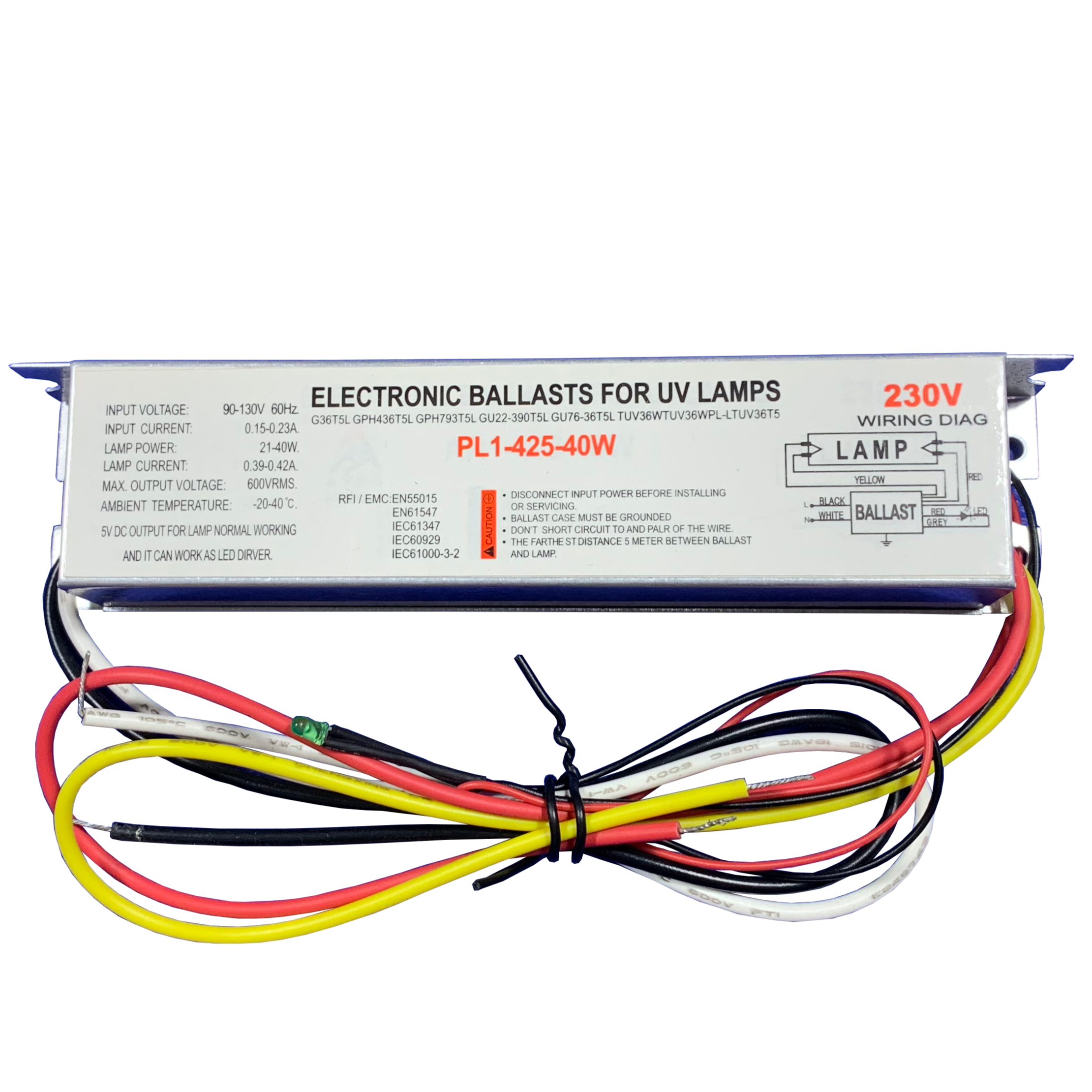

PL11-425-40 | 198-264V | 0.23@230V | >0.9 | 40 | 0.38-0.43 | Instant |

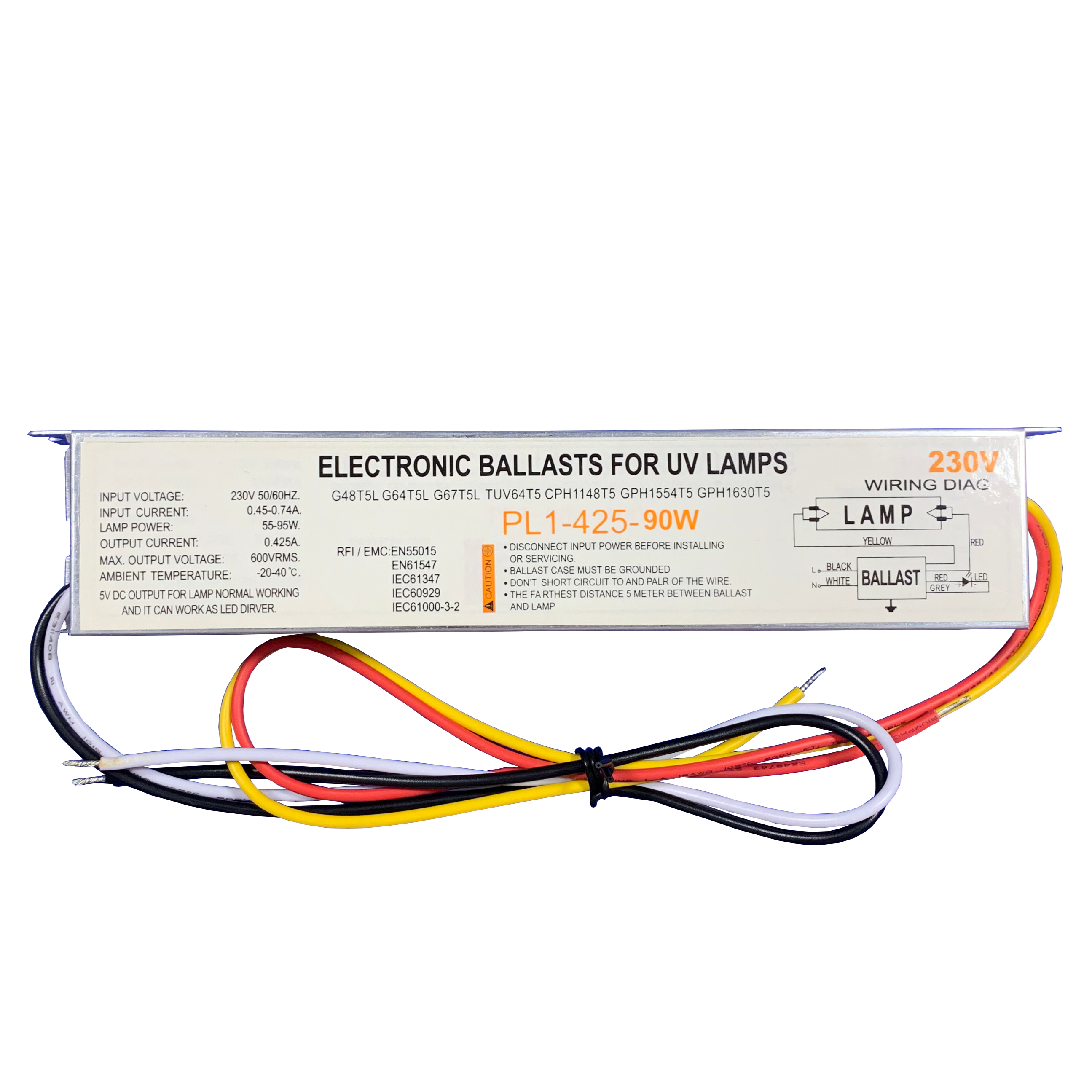

PL1-425-90 | 198-264V | 0.71@230V | >0.55 | 90 | 0.38-0.43 | Instant |

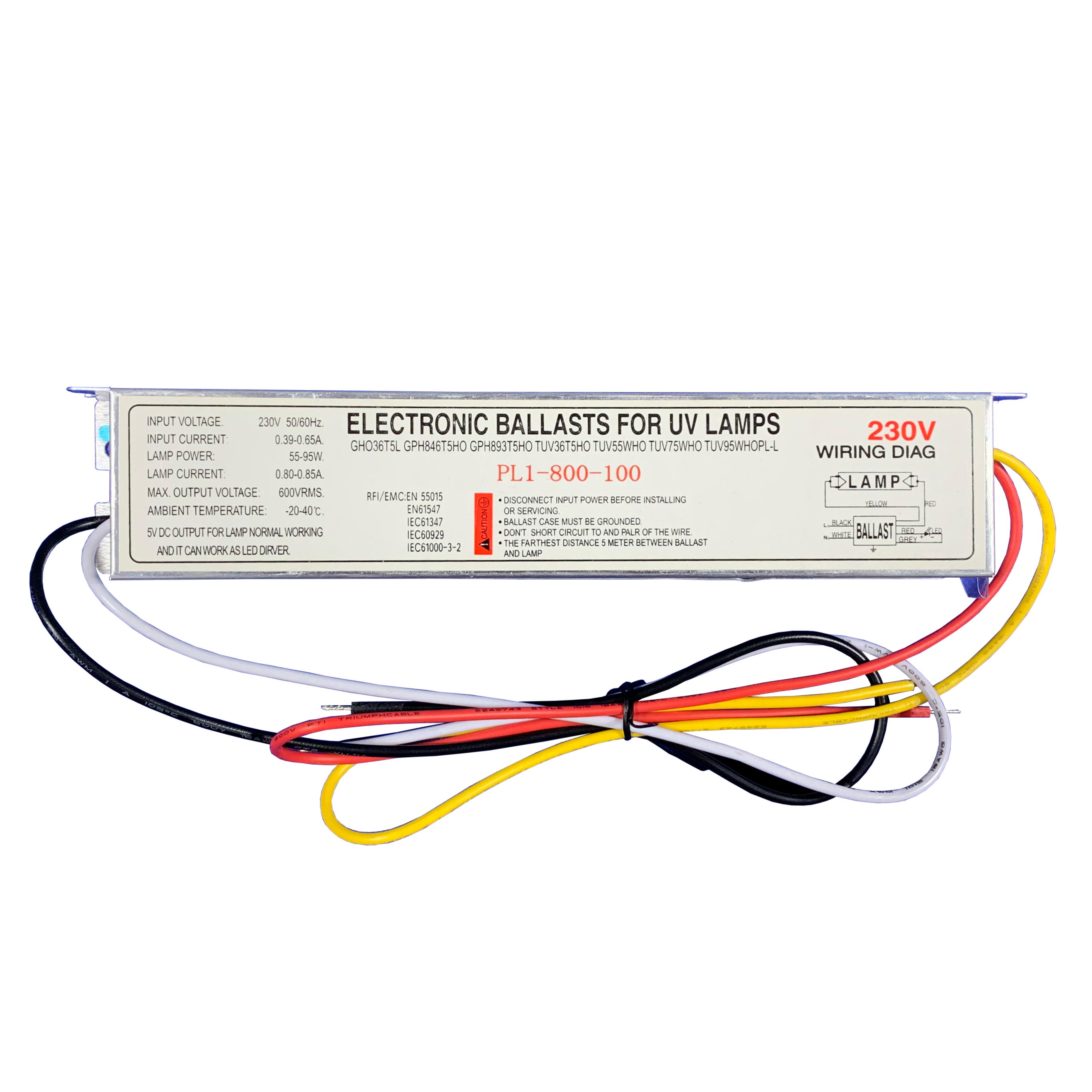

PL1-800-100 | 198-264V | 0.48@230V | >0.9 | 100 | 0.75-0.85 | Instant |
PH11-425-40 | 198-264V | 0.36@230V | >0.55 | 40 | 0.38-0.43 | Pre-heat |
PH11-800-55 | 198-264V | 0.28@230V | >0.92 | 55 | 0.7-0.9 | Pre-heat |
PH11-425-36U | 99-264V | 0.2@230V | >0.98 | 36 | 0.38-0.43 | Pre-heat |

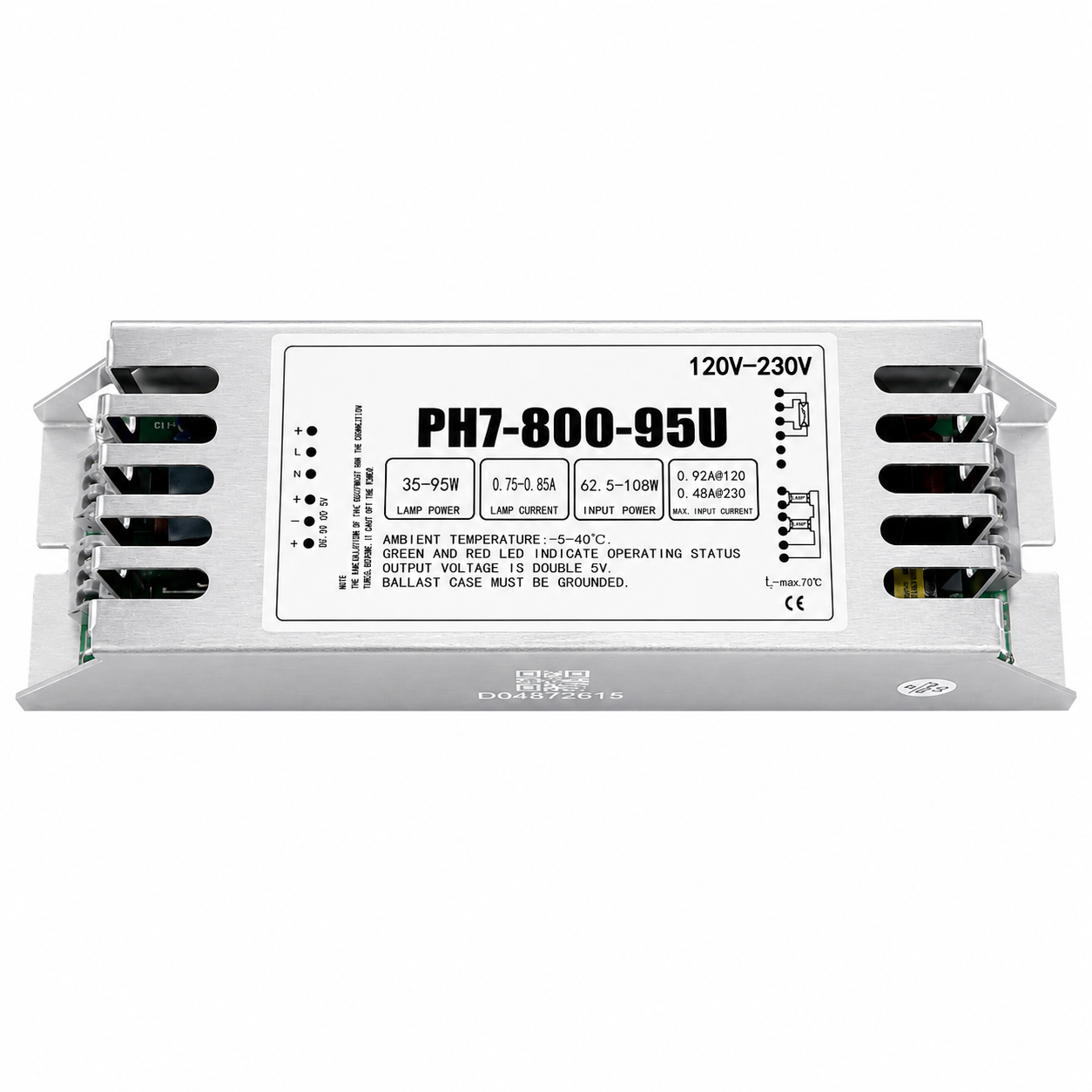

PH7-800-95U | 99-264V | 0.48@230V | >0.98 | 95 | 0.75-0.85 | Pre-heat |
EPS51-425-40U | 99-264V | 0.2@230V | >0.98 | 40 | 0.38-0.43 | Pre-heat |
EPS51-800-95N | 99-264V | 0.46@230V | >0.98 | 95 | 0.75-0.85 | Pre-heat |
105W-500W |
PH2-800-2/75 | 198-264V | 0.73@230V | >0.98 | 200 | 0.75-0.85 | Pre-heat |
EPS51-1200-105 | 198-264V | 0.52@230V | >0.98 | 105 | 1.0-1.25 | Pre-heat |
PH8-800-155 | 198-264V | 0.74@230V | >0.9 | 155 | 0.75-0.85 | Pre-heat |
PH8-1200-190 | 198-264V | 0.98@230V | >0.98 | 190 | 1.0-1.25 | Pre-heat |
PS9-AL-200 | 198-264V | 0.98@230V | >0.98 | 200 | 1.2-2.1 | Pre-heat |

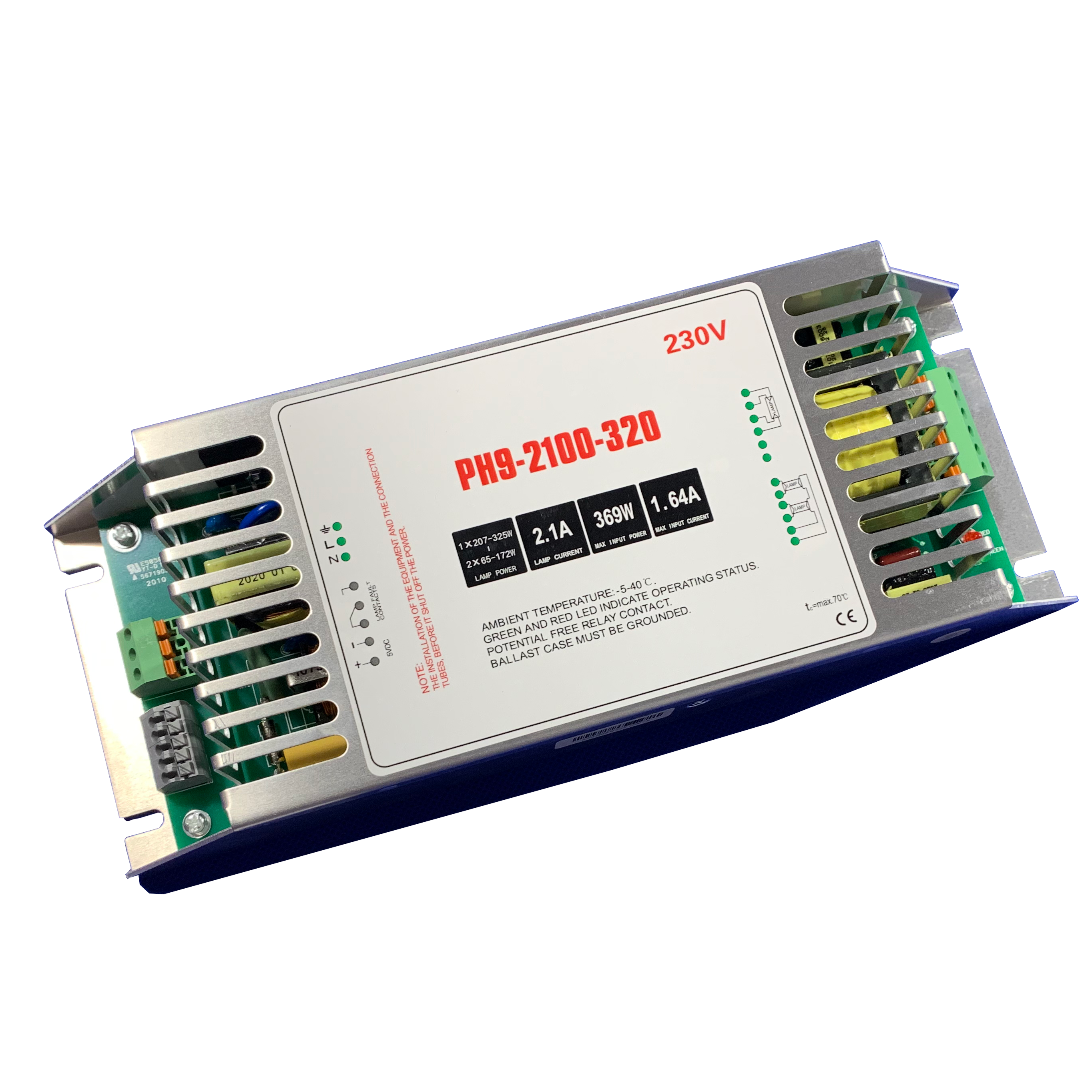

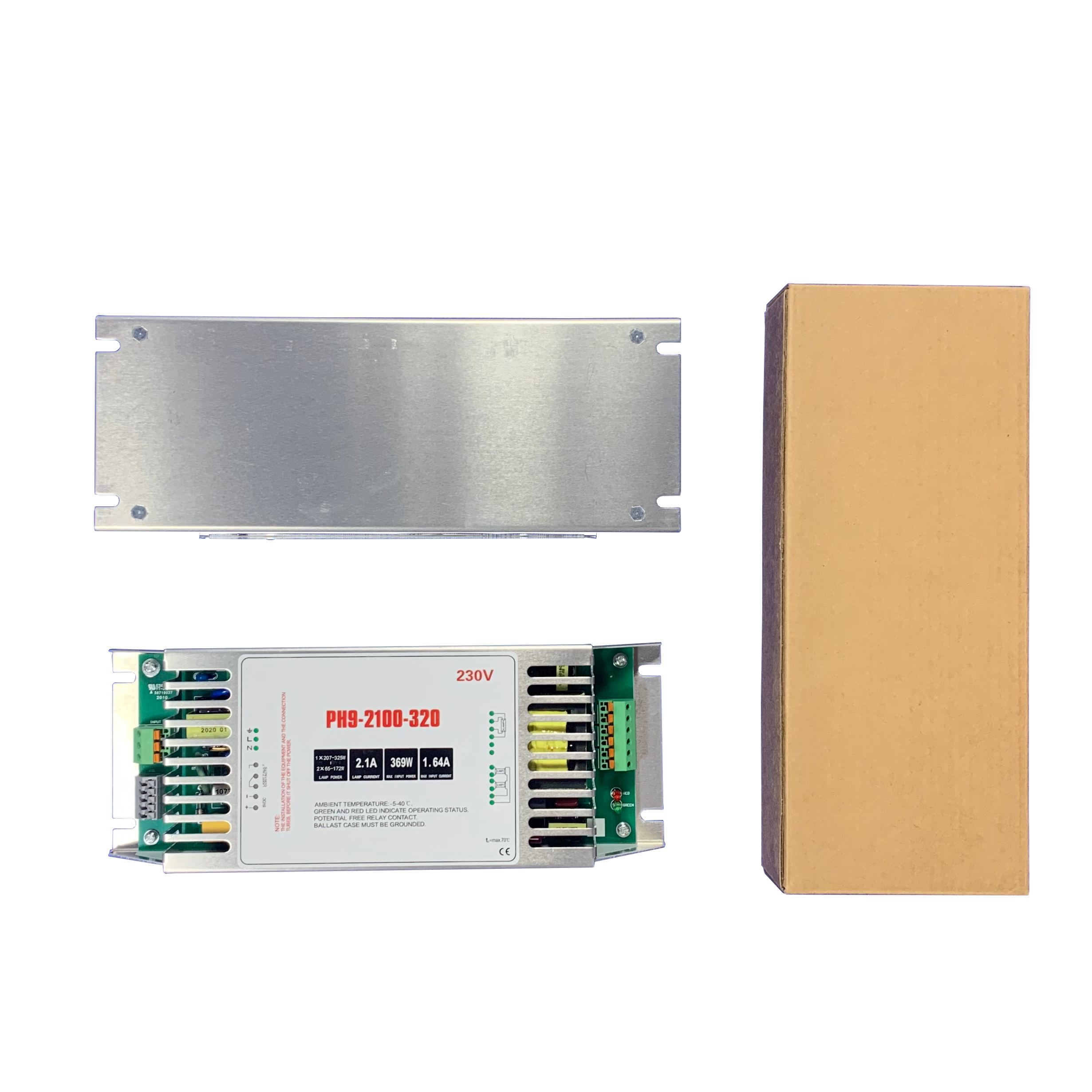

PH9-2100-320 | 198-264V | 1.64@230V | >0.98 | 369 | 1.95-2.25 | Pre-heat |
PH10-AL-500 | 198-264V | 2.32@230V | >0.98 | 500 | 4.7-6.0 | Pre-heat |
PS10-AL-2/320 | 198~264V | 3.07@230V | >0.98 | 2×320 | 1.8-2.1 | Pre-heat |
1. UV Water Treatment Systems
This electronic ballast is widely used in UV water treatment systems to provide stable power for UV lamps. It ensures consistent current output, improving sterilization efficiency and extending lamp life in residential, commercial, and industrial water disinfection applications.
2. Air Purification & HVAC Systems
In HVAC and air purification equipment, this UV electronic ballast supports reliable lamp operation for continuous air disinfection. It helps maintain stable performance in environments such as offices, hospitals, and public spaces requiring clean air.
3. Industrial UV Disinfection Equipment
Used in industrial setups, this UV lamp power supply ensures stable operation of high-power UV lamps. It is suitable for large-scale industrial UV sterilization systems, including wastewater treatment and production processes.
4. Medical & Laboratory Equipment
This electronic ballast for UV lamps is applied in medical and laboratory devices where stable UV output is critical. It supports precise and reliable sterilization in controlled environments.
5. Food Processing & Packaging Systems
In food and beverage industries, this UV ballast driver powers UV lamps used for surface and air disinfection. It helps maintain hygiene standards and ensures safe production conditions.
1. What is the function of an electronic ballast?
An electronic ballast regulates the current supplied to UV lamps, ensuring stable operation and efficient performance. It helps improve lamp lifespan and maintains consistent output in UV sterilization systems and UV lamp control applications.
2. What input voltage does it support?
Most models support a wide input voltage range, typically 99–264V. This makes the UV electronic ballast suitable for different regions and compatible with various UV lamp power supply systems.
3. What is the difference between pre-heat and instant start?
Pre-heat start warms the lamp before ignition, extending lifespan, while instant start provides immediate lighting. Both options are available to match different UV disinfection system requirements.
4. Does it help extend UV lamp life?
Yes, by providing stable current and reducing fluctuations, the ballast minimizes stress on the lamp. This improves durability and performance in UV water treatment systems and other applications.
5. Is installation complicated?
No, the compact design allows easy integration into most equipment. It is widely used in water treatment, air purification, and industrial UV sterilization systems.
