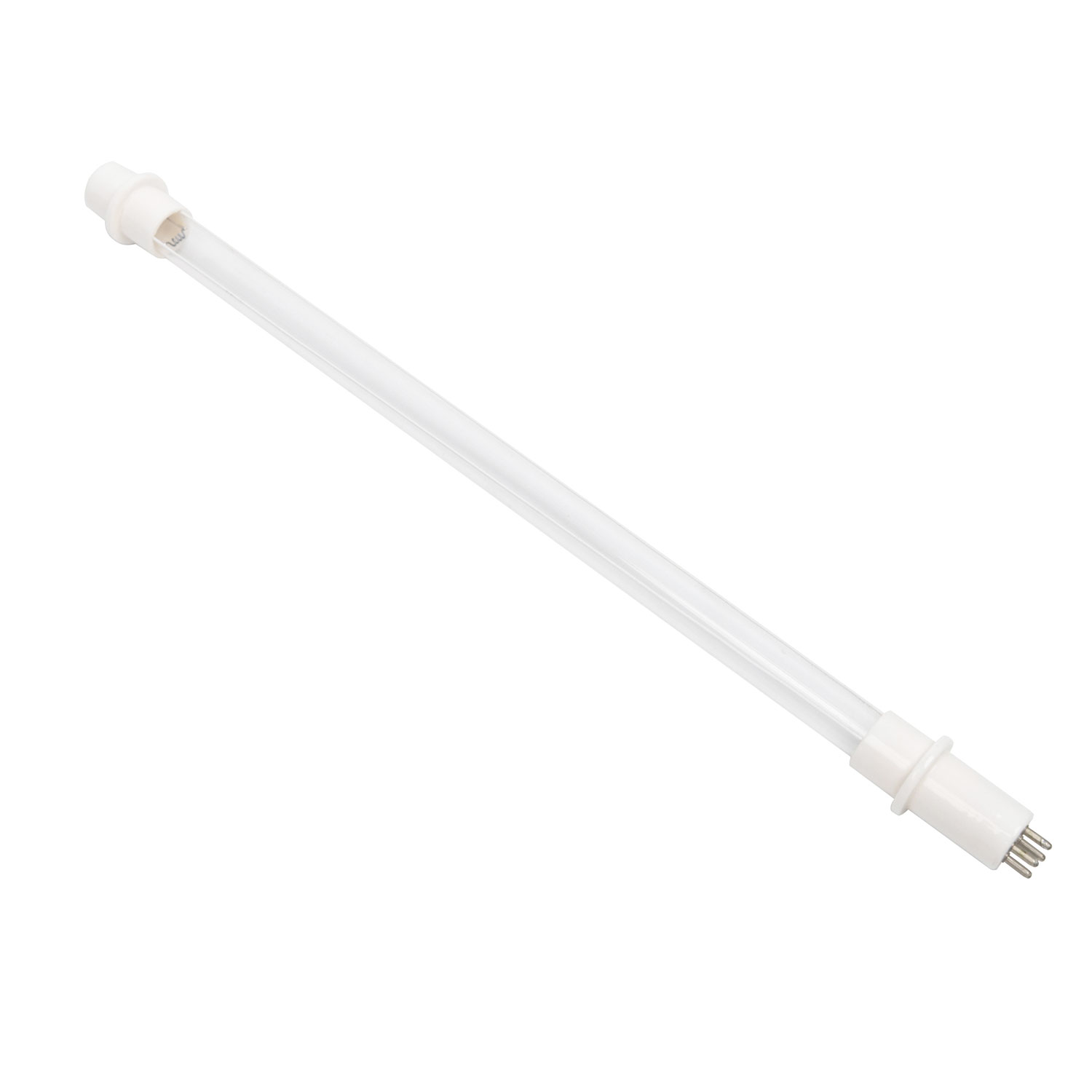

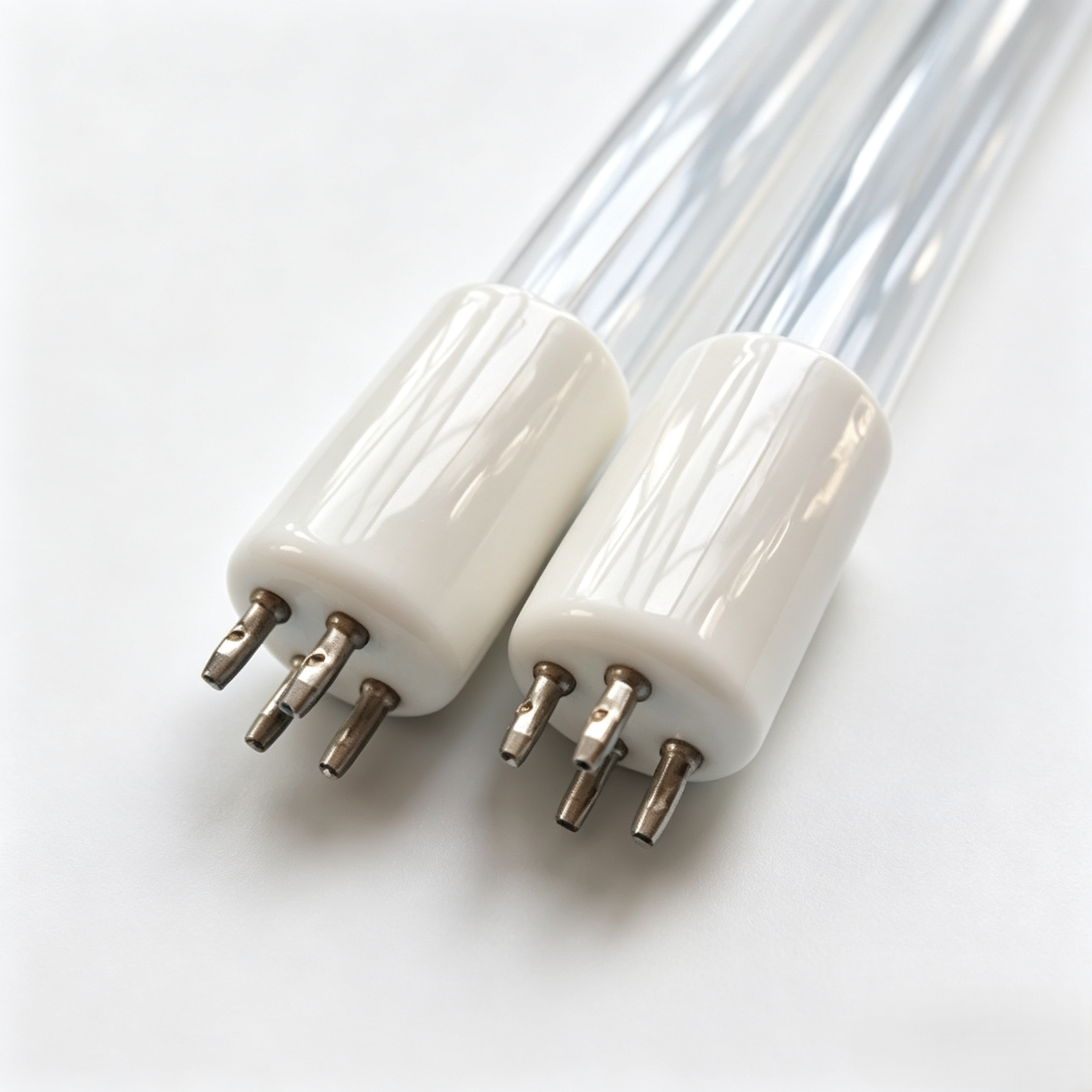

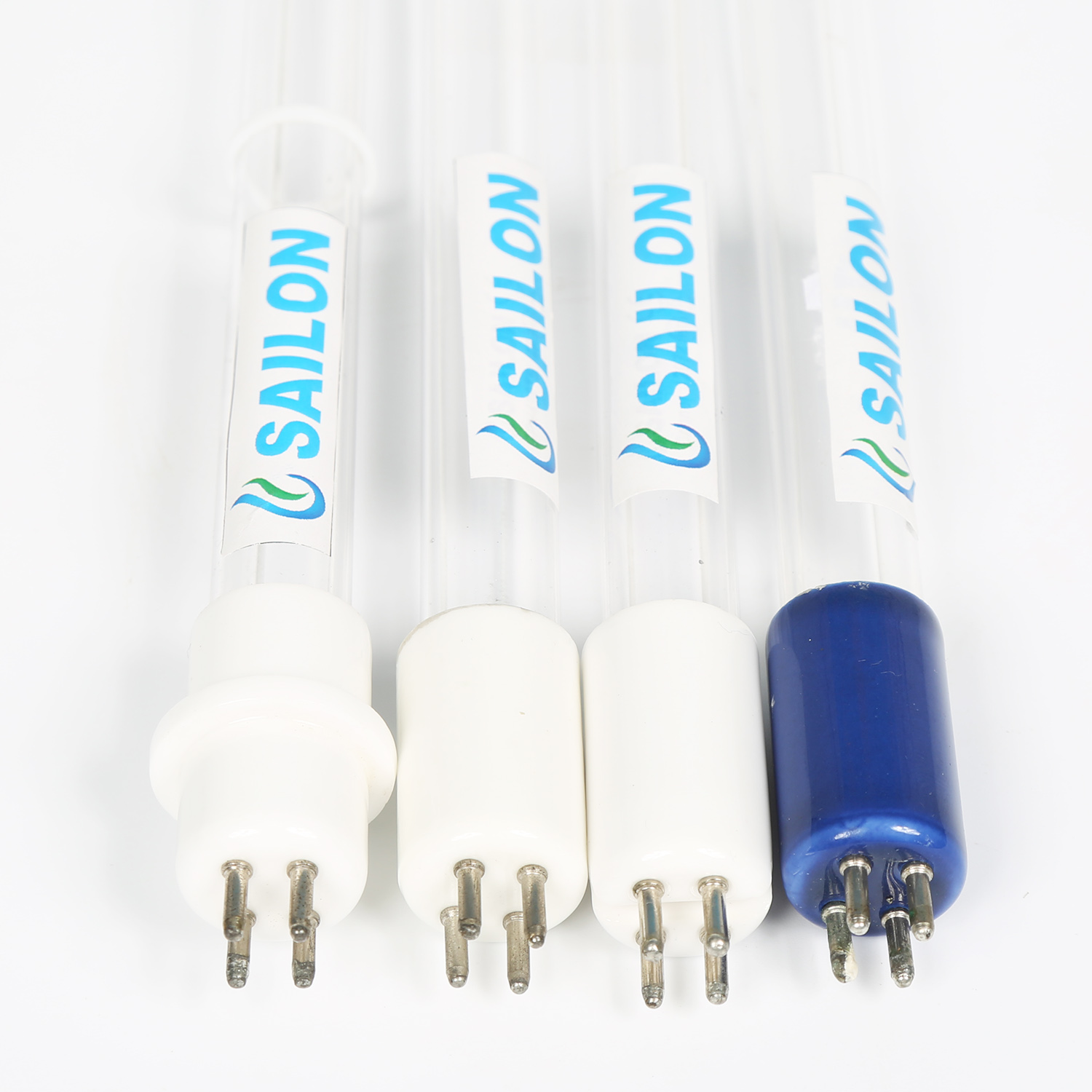

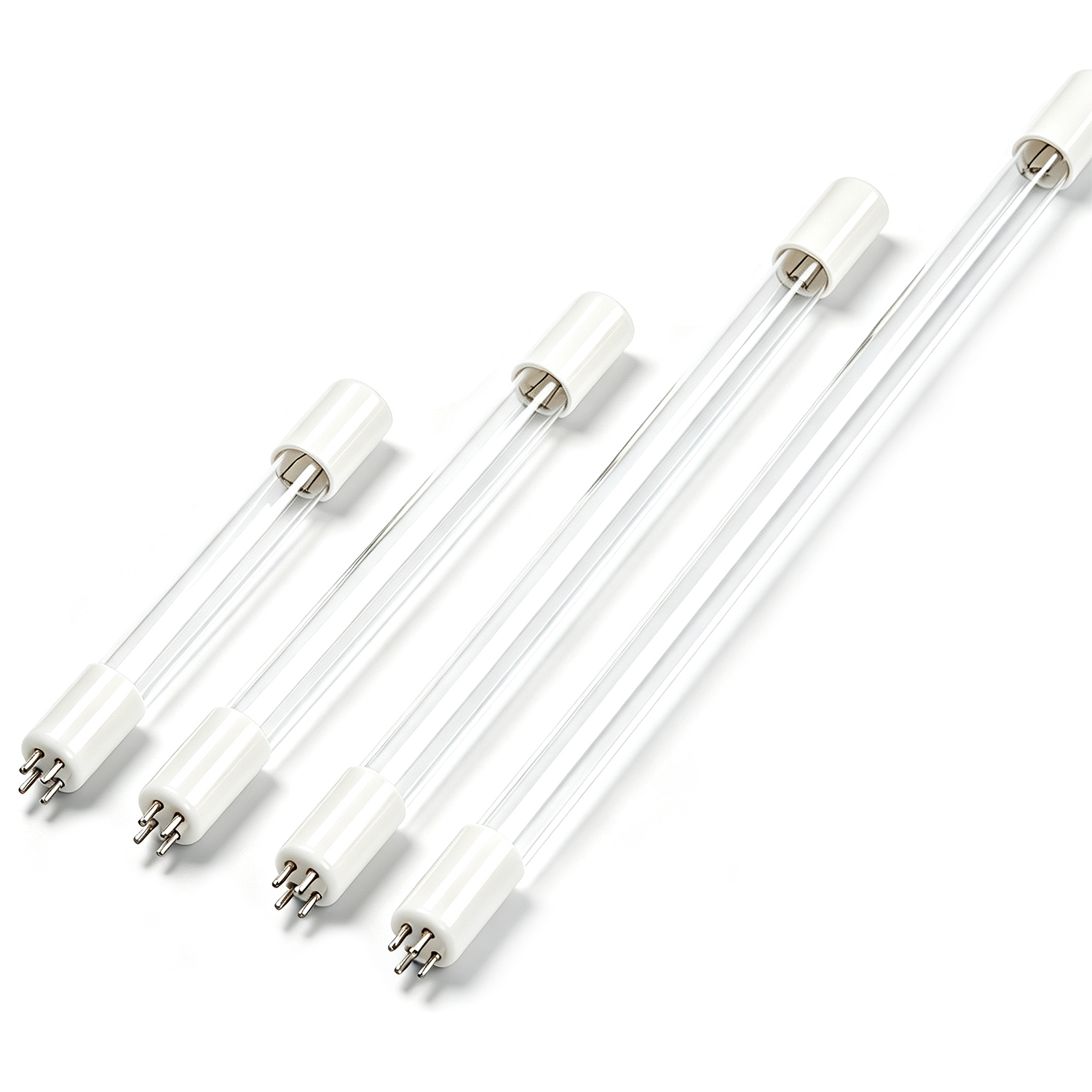

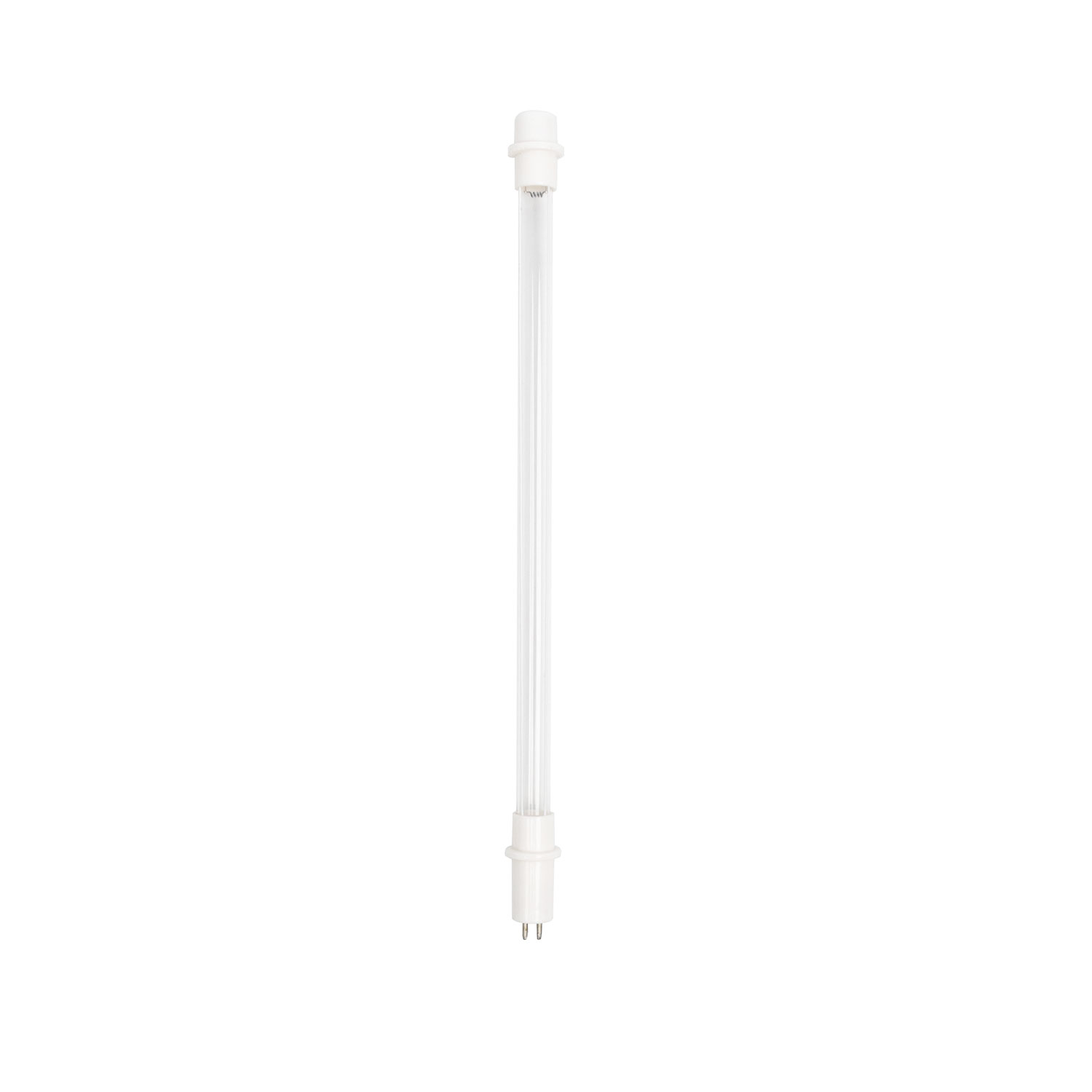

The High Output UV Germicidal Lamp is a powerful UV-C lamp designed for water and air disinfection systems. It delivers strong 254nm UV-C output with higher efficiency than standard UV lamps, effectively eliminating bacteria, viruses, and algae without chemicals. With a durable high-output design, it ensures stable performance and long service life. It is widely used in drinking water treatment, wastewater systems, swimming pools, aquaculture, and industrial UV sterilization applications.
1. High Output UV-C Technology (40–60% Stronger Output)
The High Output UV Germicidal Lamp delivers 40–60% higher UV-C output compared to standard T5 UV lamps. It ensures stronger 254nm UV intensity for faster and more efficient microbial inactivation. This makes it ideal for UV water treatment systems, UV disinfection equipment, and industrial sterilization applications requiring high-performance UV-C energy.
2. Stable UV Performance with High Efficiency Design
Designed for continuous operation, this UV-C lamp provides stable output with less than 15% UV decay during its service life. It ensures consistent disinfection performance in demanding environments. It is widely used in UV water treatment systems, HVAC air purification units, and continuous-flow UV sterilization systems.
3. Long Service Life (Up to 13,000 Hours)
The High Output UV Germicidal Lamp offers a long operational lifespan of up to 10,000–13,000 hours depending on application conditions. This significantly reduces maintenance frequency and replacement costs, making it a cost-effective solution for industrial UV disinfection systems, aquaculture, and municipal water treatment plants.
4. High UV Transmittance Quartz Tube
Made with high-quality quartz material, the lamp ensures excellent UV-C transmittance and strong penetration ability. This improves sterilization efficiency in water and air applications. It is widely used in aquarium UV sterilizers, swimming pool systems, and drinking water purification equipment.
5. Wide Applications in Water & Air Treatment
This high output UV lamp is suitable for drinking water treatment, wastewater disinfection, swimming pools, aquaculture systems, aquarium sterilization, and HVAC air purification. It provides chemical-free, eco-friendly UV disinfection for residential, commercial, and industrial UV sterilization systems.1. High Output UV-C Technology (40–60% Stronger Output)
Type | Tube
Diameter
(mm) | Length
(mm) | Power
(W) | Current
( mA) | Voltage
(V) | Voltage at
High Freq
(V) | UV Output
At1M
(uw/cm²) ( (W) | Standard
Life
(h) | Long
Life
(h) |
GPH357T5L/HO | 15 | 357 | 32 | 800 | 40 | 30 | 95 | 10 | 10000 | 13000 |

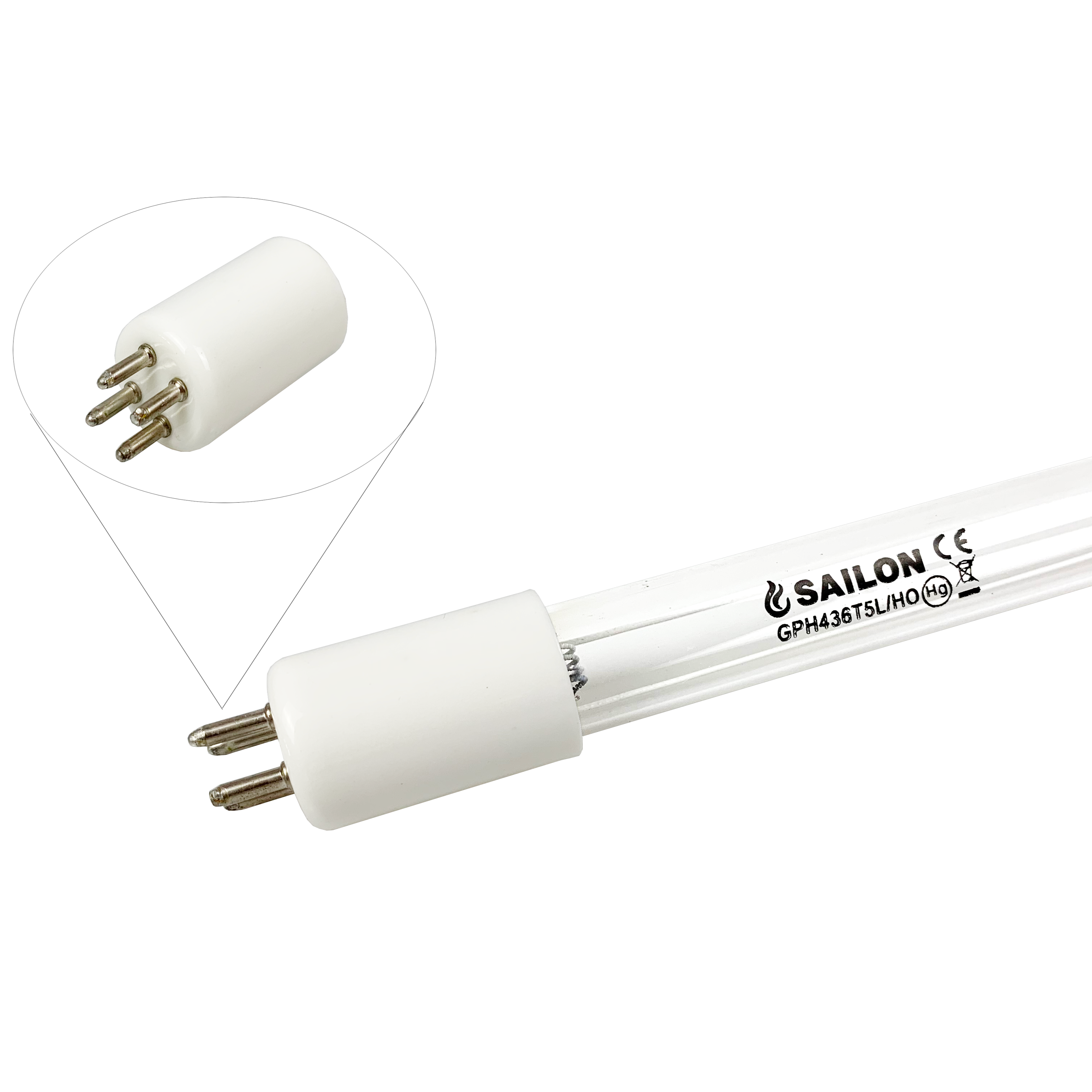

GPH436T5L/HO | 15 | 436 | 48 | 800 | 70 | 60 | 120 | 13 | 10000 | 13000 |
GPH793T5L/HO | 15 | 793 | 72 | 800 | 90 | 76 | 210 | 24 | 10000 | 13000 |
GPH846T5L/HO | 15 | 846 | 80 | 800 | 127 | 113 | 260 | 28 | 10000 | 13000 |
GPH1148T5L/HO | 15 | 1148 | 120 | 800 | 166 | 154 | 310 | 30 | 10000 | 13000 |
GPH1554T5L/HO | 15 | 1554 | 145 | 800 | 220 | 195 | 400 | 45 | 10000 | 13000 |
T6 HIGH OUTPUT |
GPS846T6L/HO | 19 | 846 | 80 | 1000 | 130 | 115 | 280 | 30 | 10000 | 13000 |
GPS1148T6L/HO | 19 | 1148 | 120 | 1000 | 185 | 170 | 340 | 38 | 10000 | 13000 |
GPS1554T6L/HO | 19 | 1554 | 150 | 1000 | 230 | 200 | 400 | 45 | 10000 | 13000 |
1. Drinking Water Treatment
Used in UV water treatment systems, it provides strong UV-C disinfection to eliminate bacteria and viruses without chemicals, ensuring safe drinking water.
2. Wastewater Treatment
Suitable for industrial wastewater systems, it delivers high UV output for effective disinfection before discharge or reuse.
3. Swimming Pool & Aquaculture
Used in pools and aquaculture systems to remove algae and bacteria, improving water quality and reducing chemical use.
4. HVAC Air Sterilization
Applied in HVAC systems to reduce airborne bacteria, viruses, and mold, improving indoor air quality.
1. What is the advantage of a high output UV lamp?
The High Output UV Germicidal Lamp provides 40–60% stronger UV-C intensity than standard UV lamps. It ensures faster and more efficient disinfection in UV water treatment and UV air sterilization systems, improving overall sterilization performance.
2. What is the lifespan of this UV-C lamp?
This UV-C lamp offers a long service life of up to 10,000–13,000 hours depending on operating conditions. It reduces replacement frequency and maintenance costs, making it suitable for continuous industrial UV disinfection applications.
3. Is this UV lamp suitable for all systems?
It is compatible with most UV water treatment and air sterilization systems, but correct wattage and size selection are required to ensure proper installation and optimal UV-C performance.
4. What applications can it be used for?
The lamp is widely used in drinking water treatment, wastewater systems, swimming pools, aquaculture, aquariums, and HVAC air purification systems, providing chemical-free UV disinfection.
