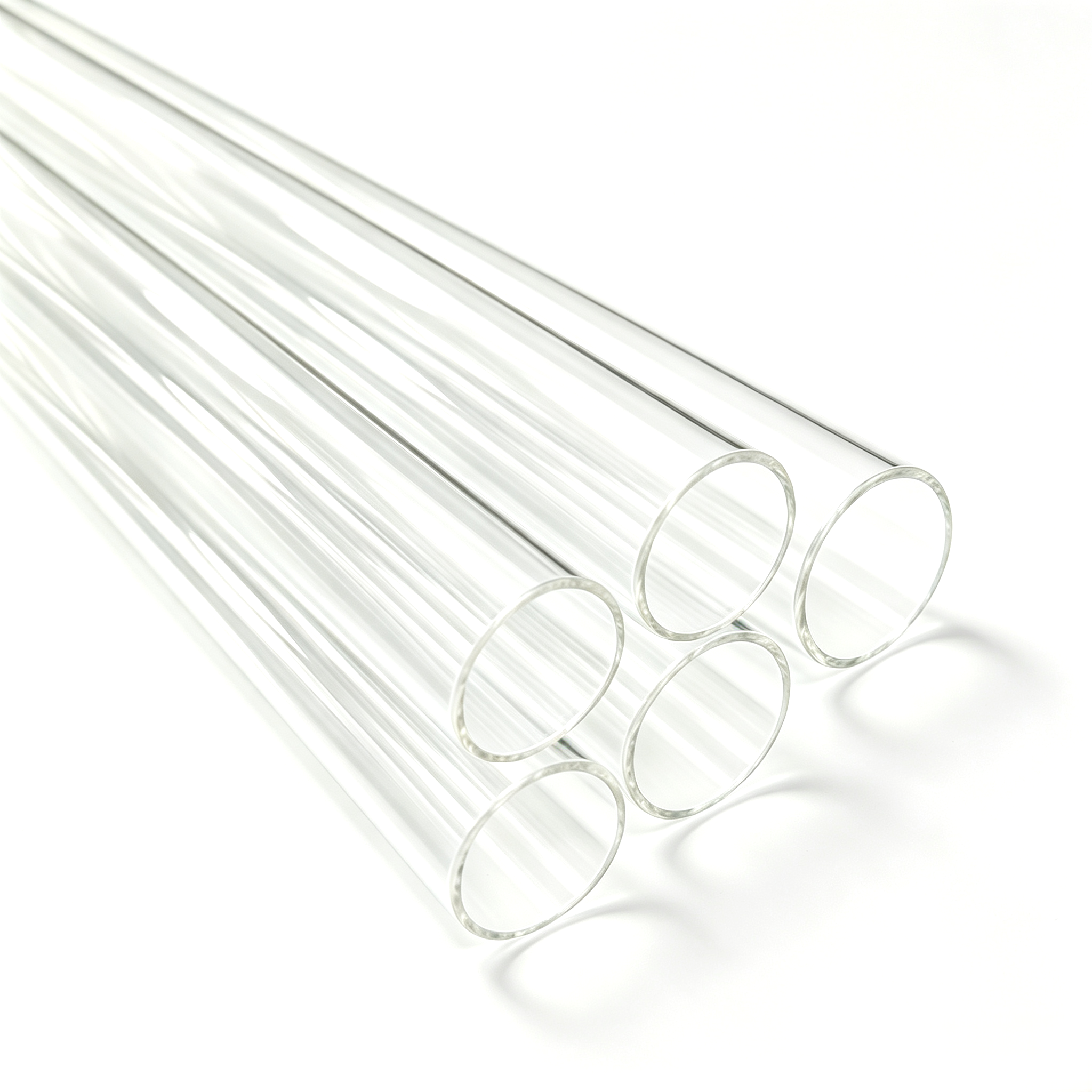

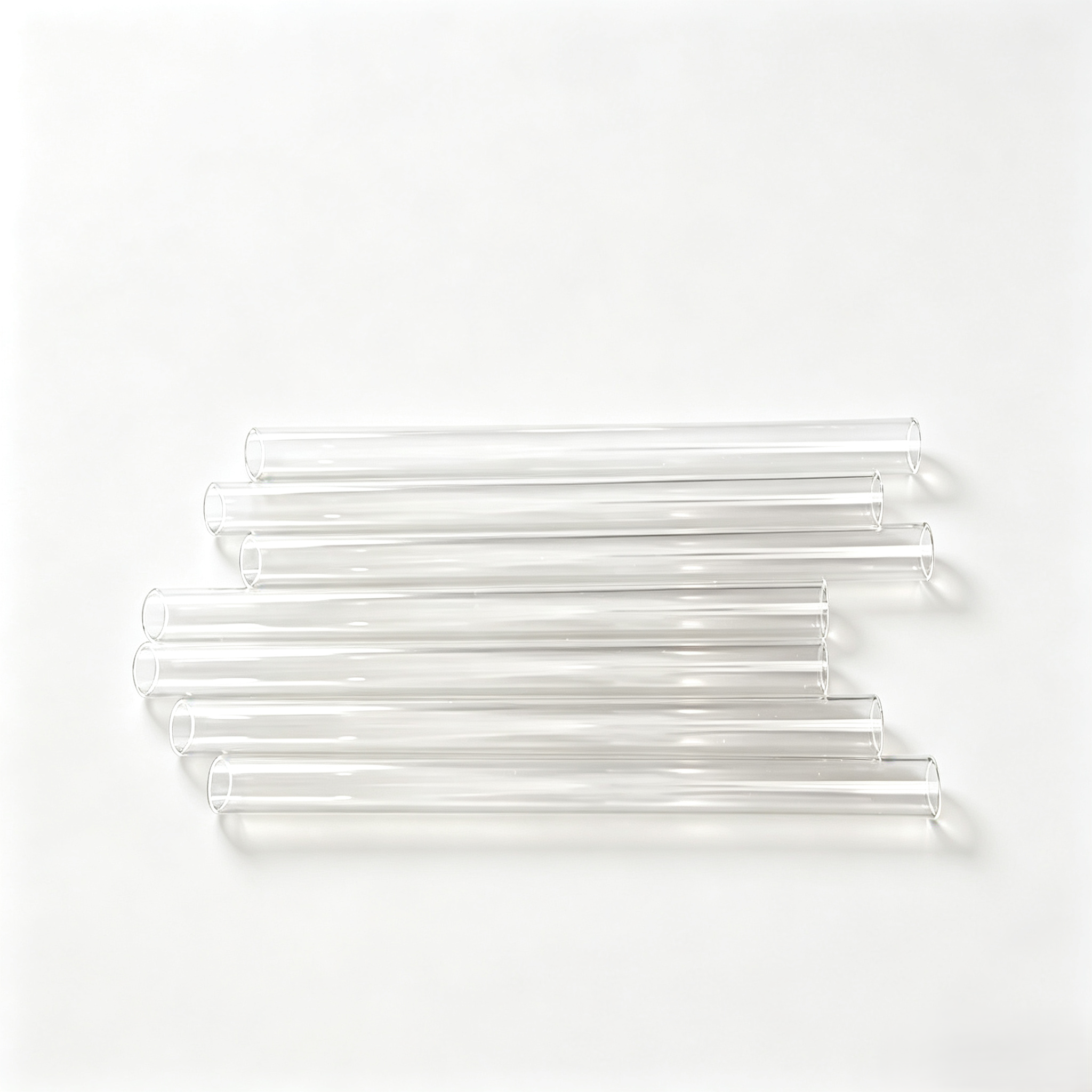

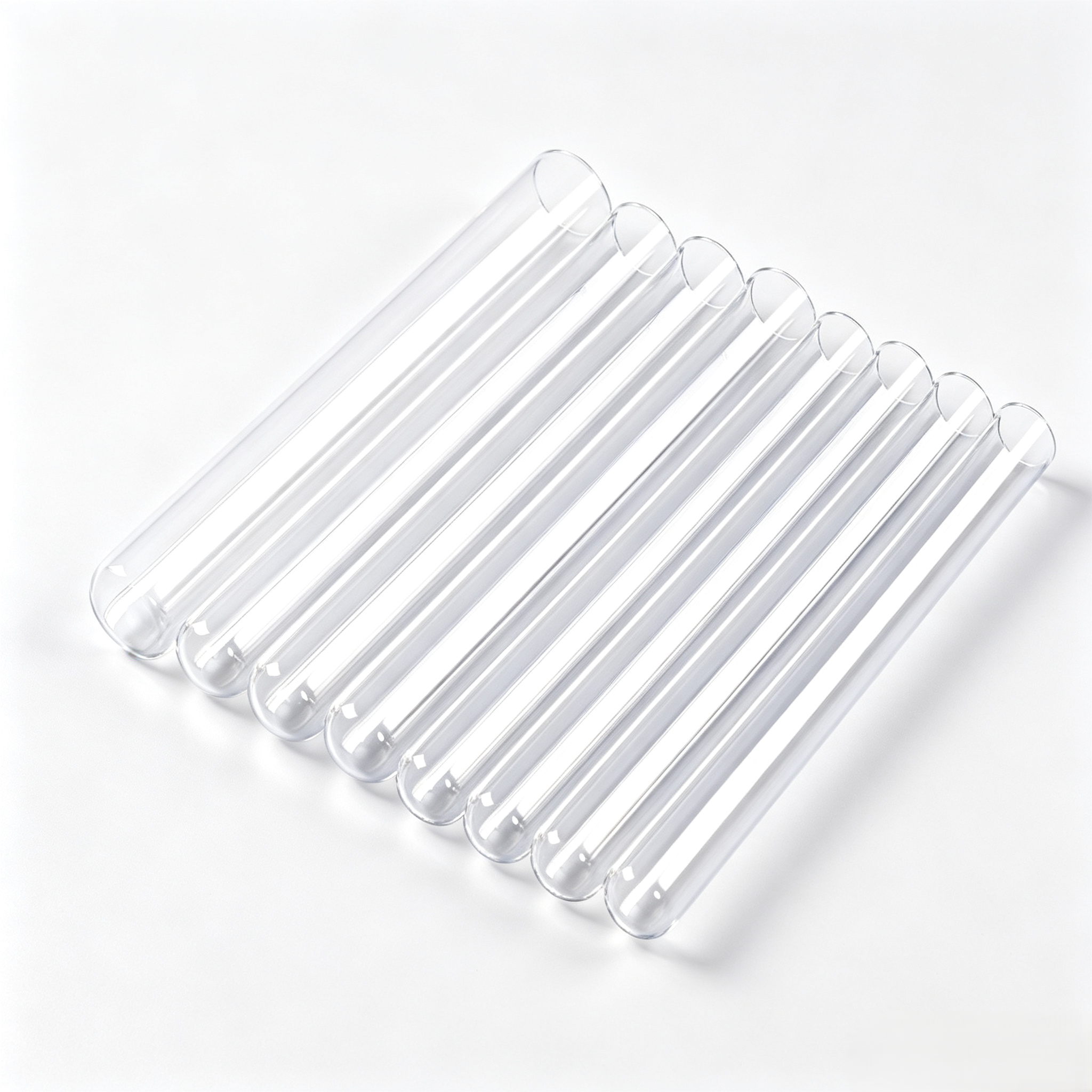

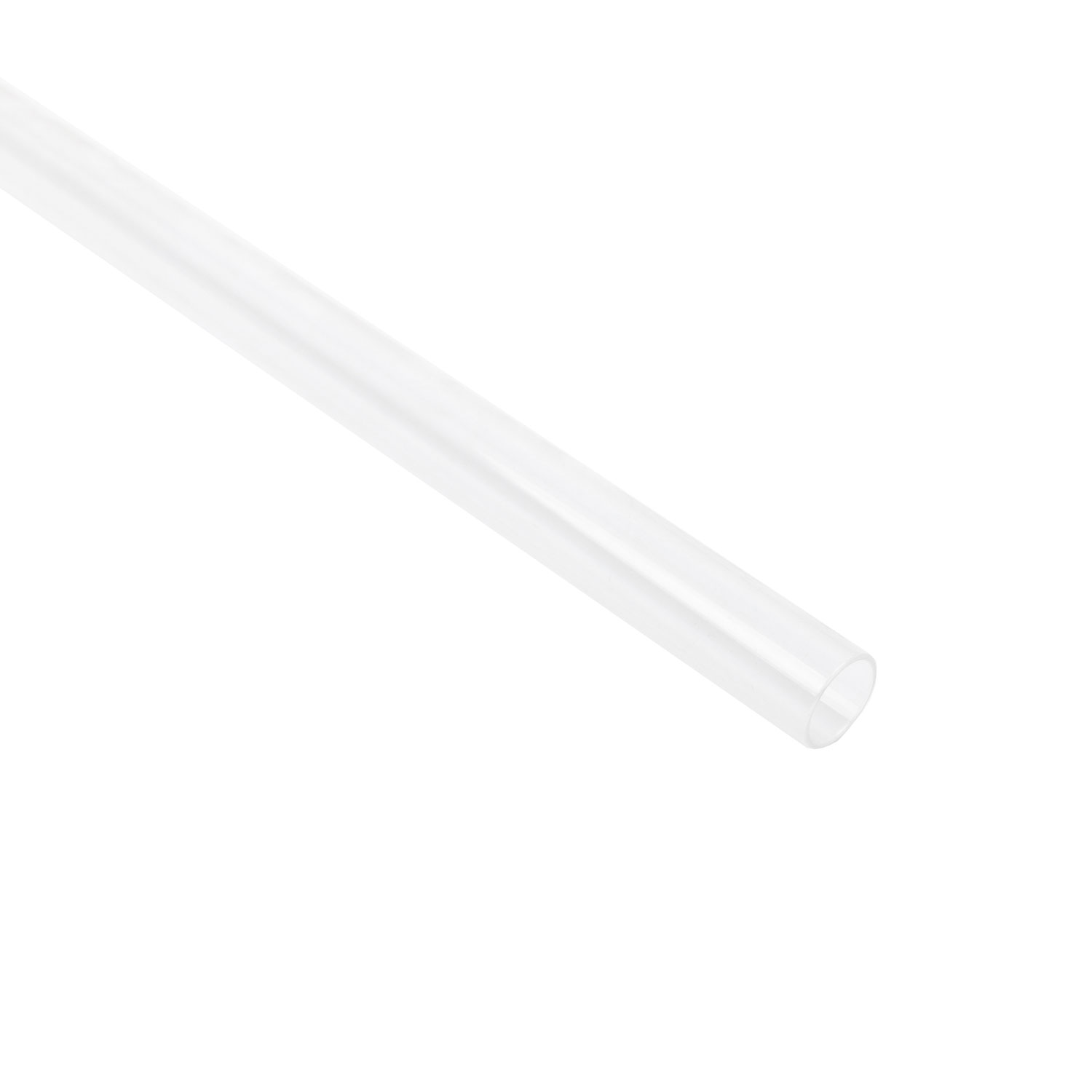

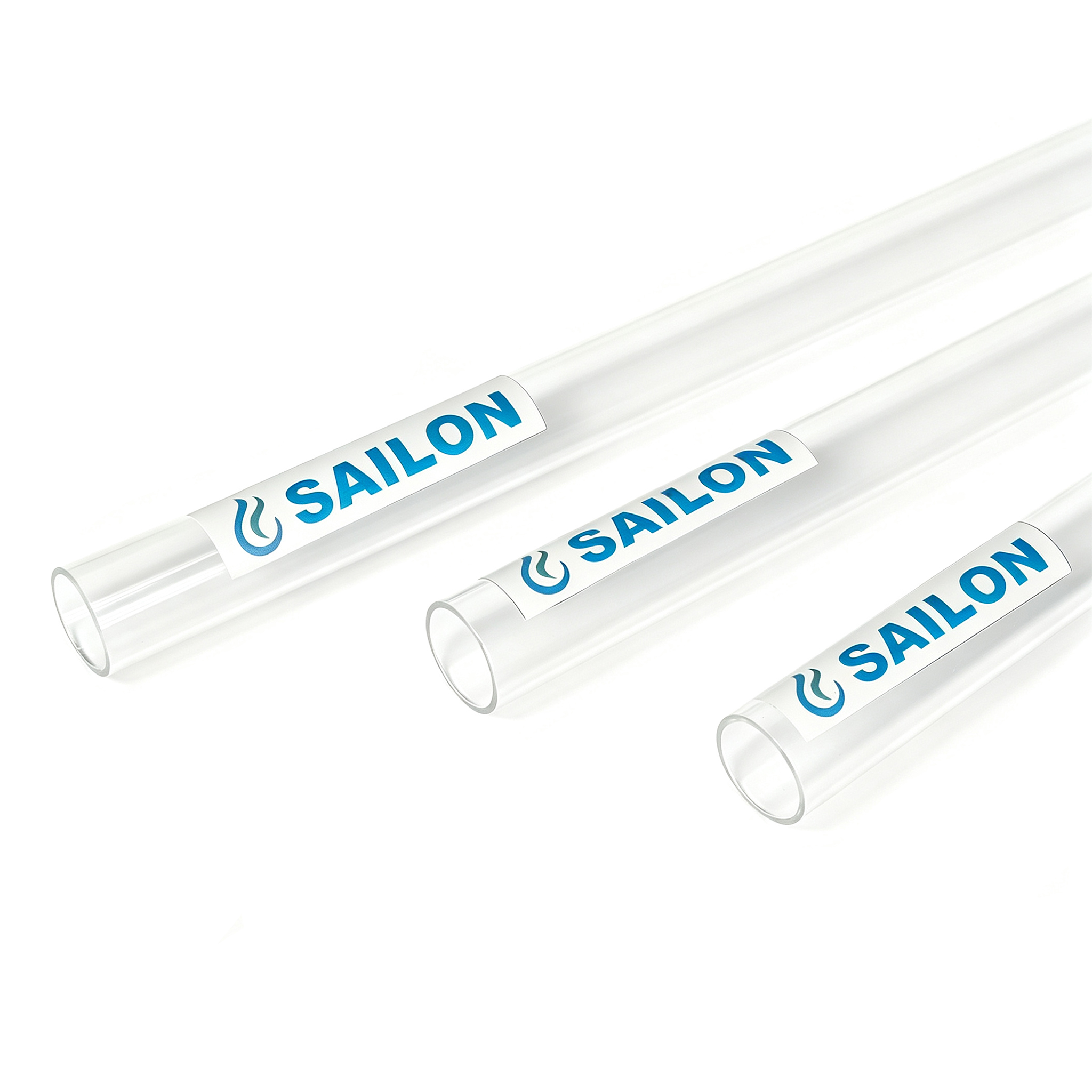

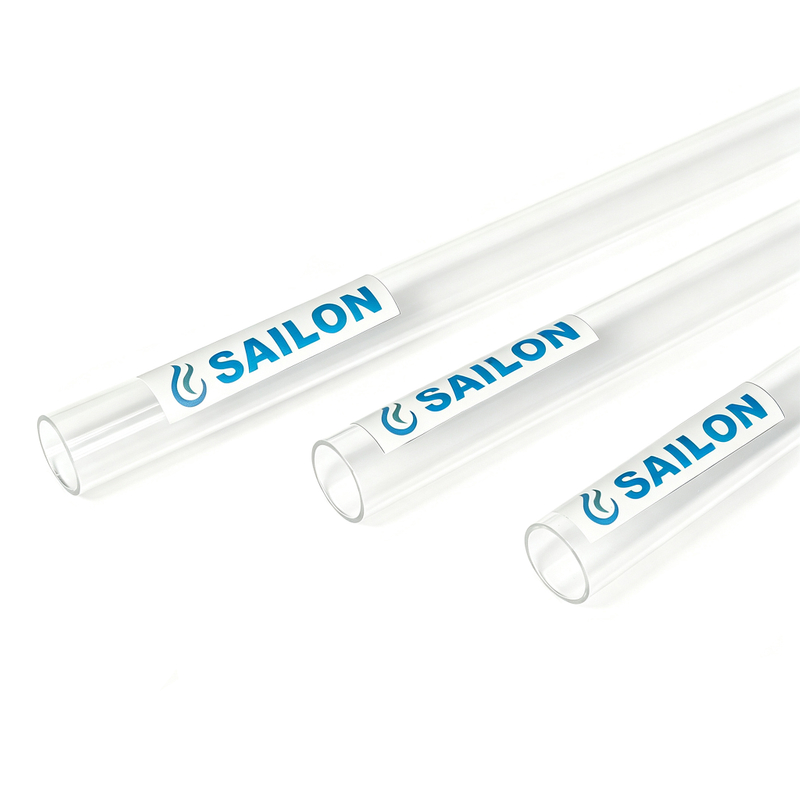

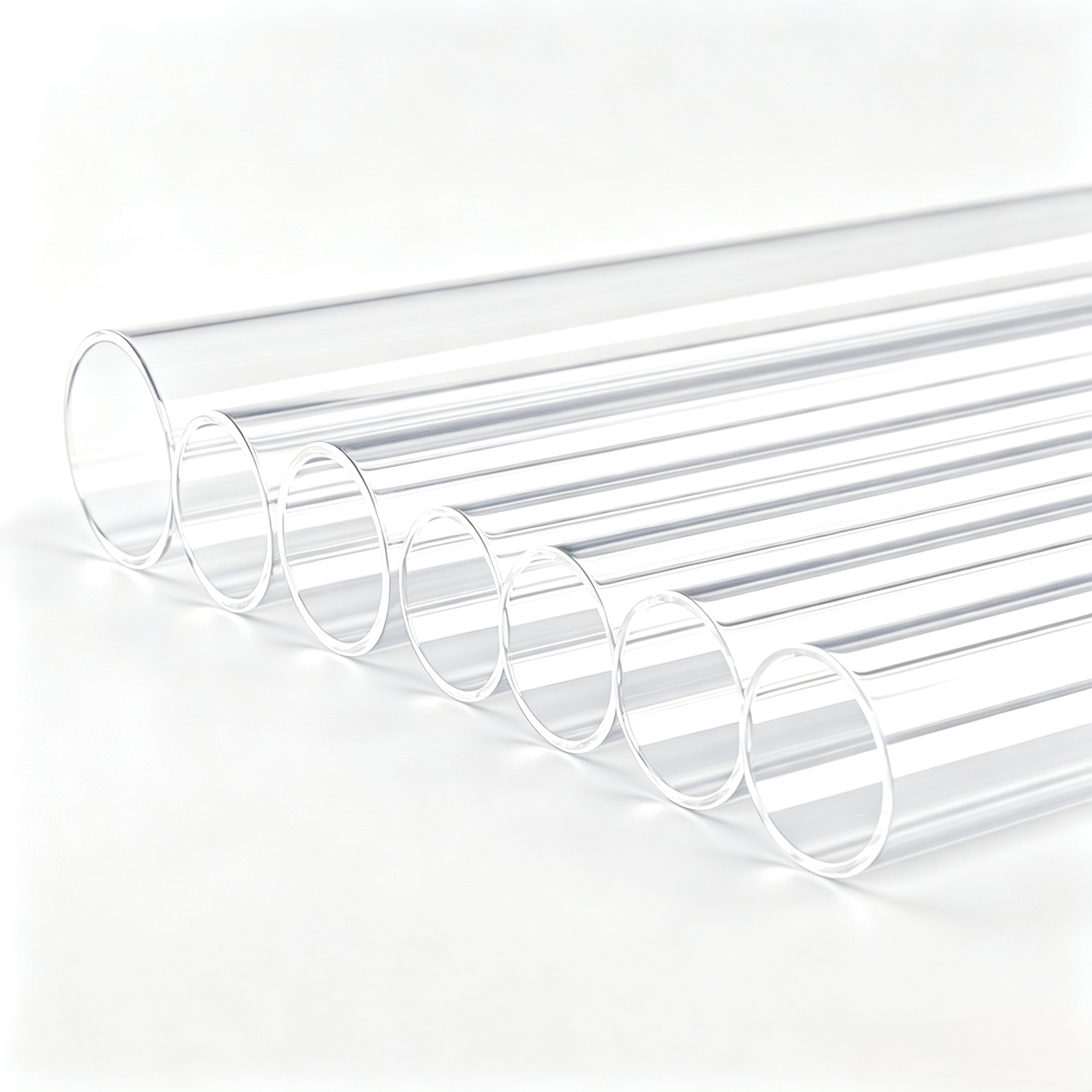

Quartz Tube is a high-purity glass component designed for UV lamp protection and efficient ultraviolet transmission. Made from premium quartz material, it offers over 90% UV transmittance at 254nm, ensuring optimal performance in UV sterilization systems. The tube provides strong resistance to high temperatures, corrosion, and chemical exposure, making it suitable for demanding environments. Available in various diameters and wall thicknesses, it supports different UV lamp types, including standard and high-output lamps. It is widely used in water treatment, air purification, and industrial UV disinfection applications.
1. High UV Transmittance for Maximum Efficiency
This quartz tube is made from high-purity material with over 90% UV transmittance at 254nm, ensuring optimal performance in UV sterilization systems. It maximizes UV output from lamps, improving disinfection efficiency in UV water treatment and UV germicidal applications.
2. Excellent Heat & Chemical Resistance
Designed to withstand high temperatures and harsh environments, this quartz sleeve for UV lamps offers strong resistance to thermal shock and chemical corrosion. It is ideal for industrial UV disinfection systems and long-term use in demanding water treatment conditions.
3. Precision Dimensions & Wide Compatibility
Available in multiple diameters and wall thicknesses, this UV quartz tube supports various lamp types, including standard, high-output, and amalgam lamps. It ensures perfect fit and stable performance in UV lamp protection sleeves and customized systems.
4. Durable Protection for UV Lamps
The quartz tube acts as a protective barrier, isolating UV lamps from water, dust, and contaminants. This helps extend lamp lifespan and maintain consistent UV output in UV water sterilizer systems and air purification equipment.
5. Reliable Quality & Customization Options
Manufactured under strict quality standards, this high purity quartz tube ensures consistent performance and durability. Custom sizes and specifications are available to meet different UV disinfection system requirements and industrial applications.
Inside Diameter
(mm) | Outside Diameter
(mm) | Wall Thickness
(mm) | Suggested Applicalions
15mmo.D.Standard And High output Lamps Without End Caps |
17.0 | 19 | 1.00 | 15mmO.D Standard and High Output lamps |
18.0 | 20.5 | 1.25 | 15mmo.D.Standard and High Output lamps |
19.0 | 22.0 | 1.20 | 15mmO.D.Standard and High Output lamps |
20.0 | 22.0 | 1.00 | 15mmO.D.Standard,High Output and Amalgam lamps |
20.0 | 23.0 | 1.25 | 15mmO.D.Standard and High Output lamps |
20.0 | 23.0 | 1.50 | 19mmO.D.Standard.High Output and Amalgam lamps |
22.0 | 25.0 | 1.25 | 19mmO.D.Standard and High Output lamps |
22.0 | 25.0 | 1.50 | 19mmO.D.Standard and High Output lamps |
25.0 | 28.0 | 1.50 | 19mmo,D.Standard and High Output lamps |
26.0 | 30.0 | 2.00 | 25mmO.D.Standard.High Output and Amalgam lamps |
26.0 | 30.0 | 2.00 | |
30.0 | 33.0 | 1.50 | |
32.0 | 36.0 | 2.00 | 32mmO.D.Standard.High Output and Amalgam lamps |
34.0 | 38.0 | 2.00 | 32mmO.D.Standard,High Output and Amalgam lamps |
35.0 | 38.0 | 1.50 | 32mmO.D.Standard and High Output lamps |
42.0 | 45.0 | 1.50 | |
44.0 | 48.0 | 2.00 | |
45.0 | 48.0 | 1.50 | |
1. UV Water Treatment Systems
Quartz tubes are widely used in UV water treatment systems as protective sleeves for UV lamps. They allow high UV transmission while isolating lamps from water, ensuring efficient and safe disinfection in drinking water, wastewater, and industrial water purification applications.
2. Air Purification Equipment
In UV air disinfection systems, quartz tubes protect the UV lamps while maintaining strong ultraviolet output. They are commonly used in HVAC systems, air purifiers, and cleanrooms, helping eliminate airborne bacteria and viruses.
3. Industrial UV Disinfection Systems
This UV quartz sleeve is ideal for industrial environments where stable performance is required. It is used in large-scale UV sterilization equipment for food processing, pharmaceuticals, and manufacturing, ensuring consistent and reliable disinfection.
4. Aquaculture & Aquarium Systems
Quartz tubes are used in aquaculture and aquarium UV systems to protect lamps in water environments. They support efficient UV water sterilization, helping maintain clean water and healthy conditions for fish and aquatic life.
5. Laboratory & Medical Equipment
In labs and medical devices, this high purity quartz tube ensures stable UV transmission for precise sterilization. It is suitable for controlled environments requiring reliable UV disinfection performance.
1. What is the function of a quartz tube?
A quartz tube acts as a protective sleeve for UV lamps, isolating them from water, dust, and contaminants. It allows high UV transmission while maintaining stable performance in UV sterilization systems and UV water treatment applications.
2. Why is quartz used instead of regular glass?
Quartz offers over 90% UV transmittance at 254nm, while regular glass blocks most UV light. This makes UV quartz tubes essential for efficient UV disinfection systems and high-performance sterilization.
3. How long does a quartz tube last?
Quartz tubes have a long service life but depend on usage conditions. With proper maintenance and cleaning, they can last for years while maintaining stable performance in UV lamp systems.
4. Does it require maintenance?
Yes, regular cleaning is recommended to remove scale or dirt buildup. This ensures maximum UV transmission and stable efficiency in UV water sterilizer systems.
5. Can it be customized?
Yes, quartz tubes are available in various sizes, diameters, and thicknesses. Custom specifications can be provided to fit different UV lamp sleeves and UV disinfection equipment.
