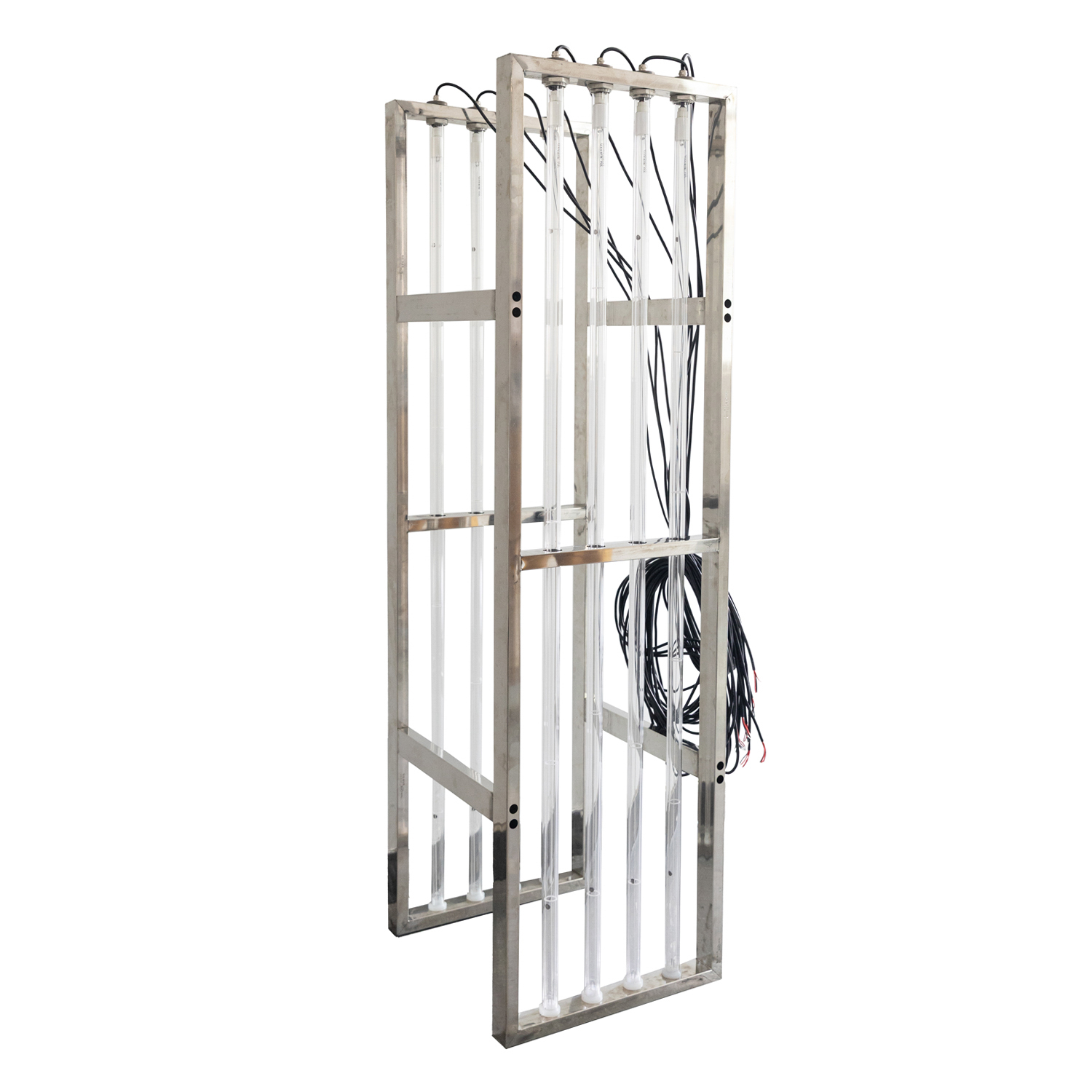

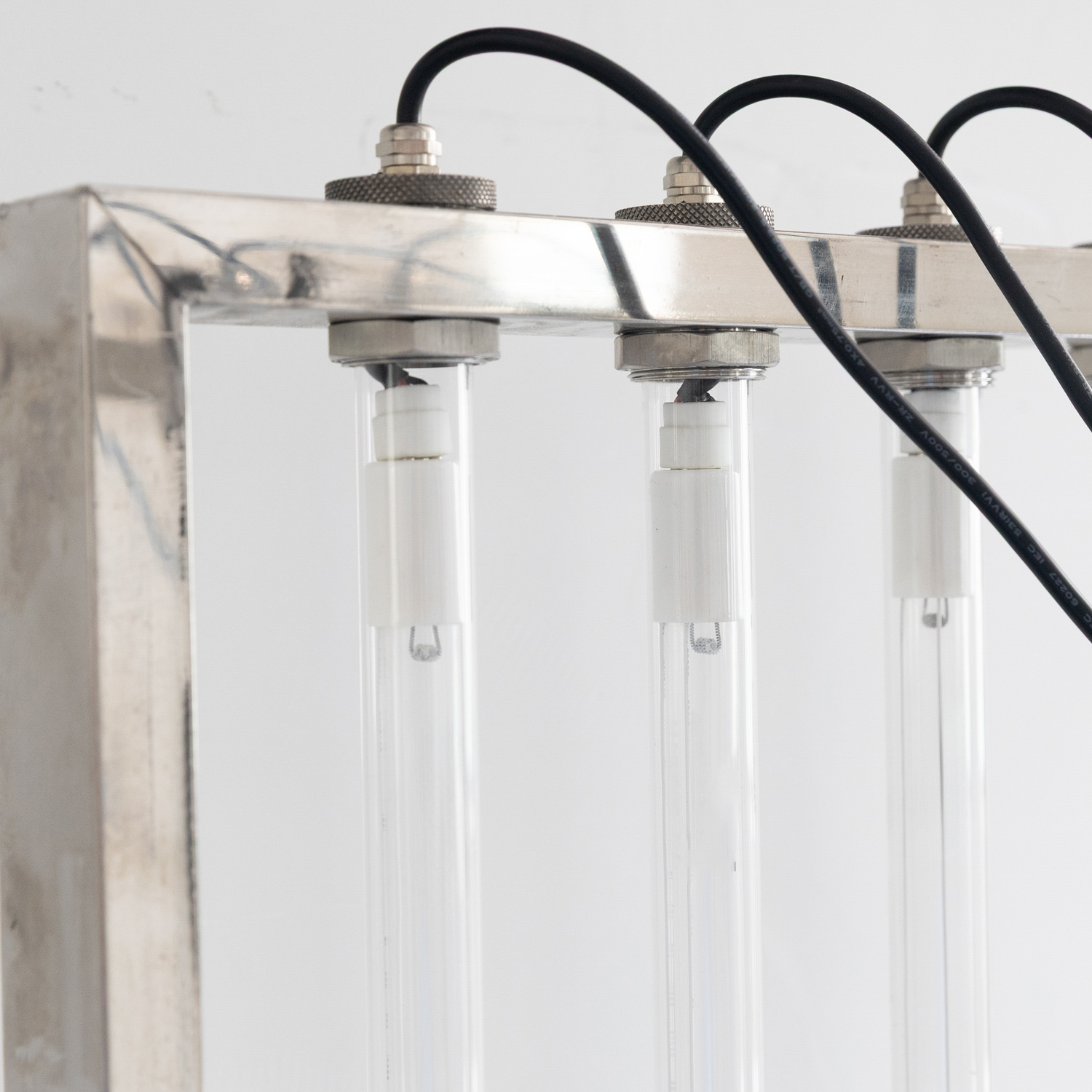

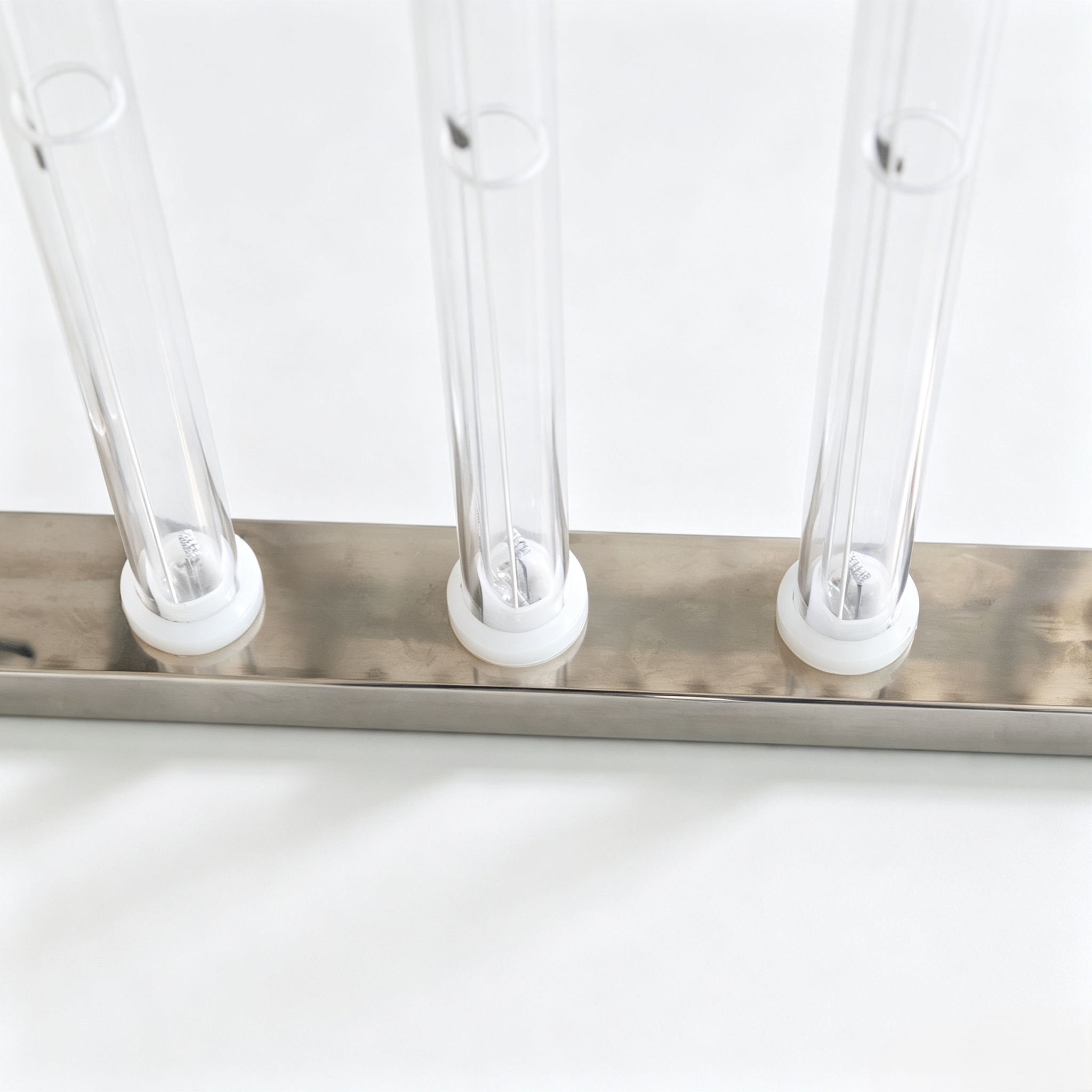

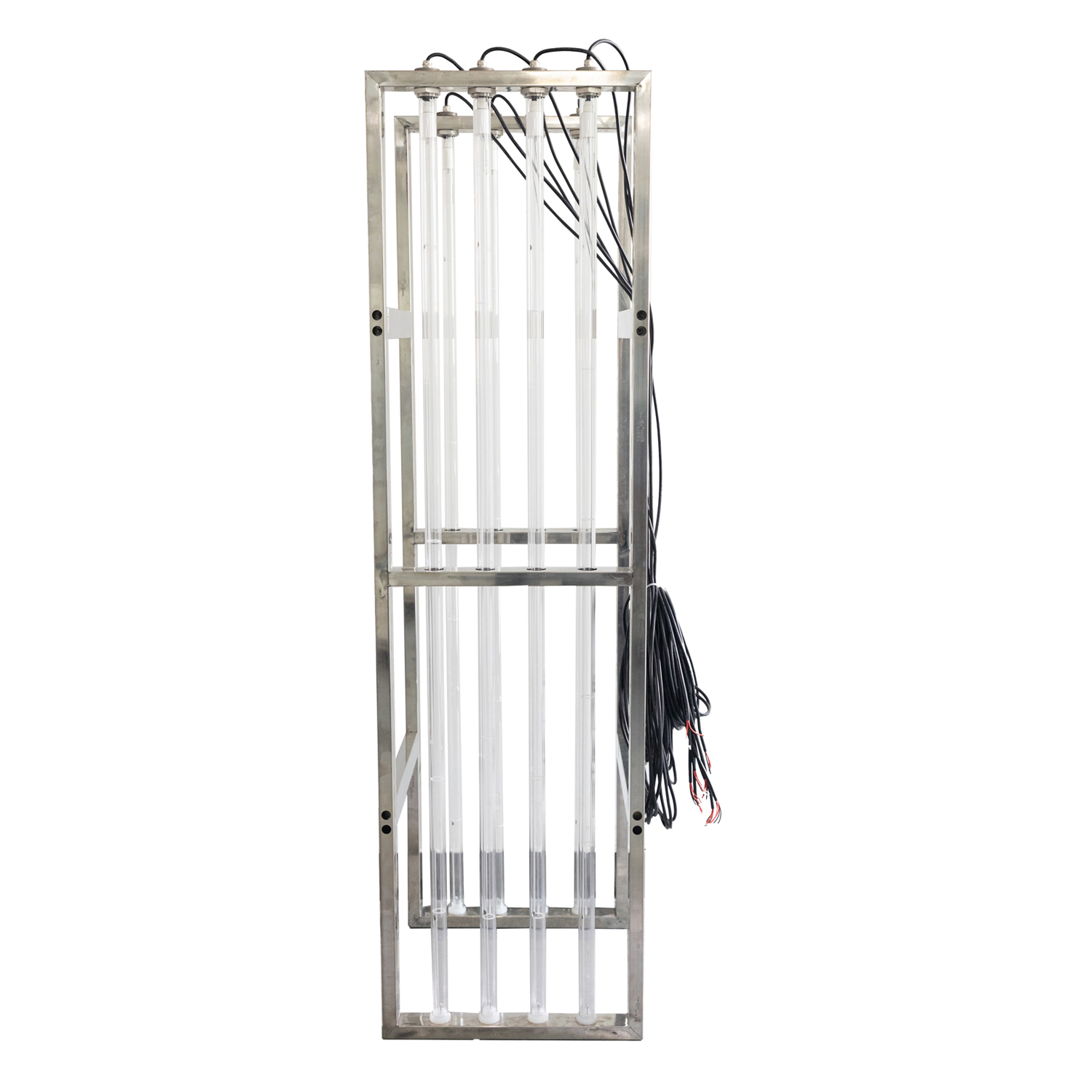

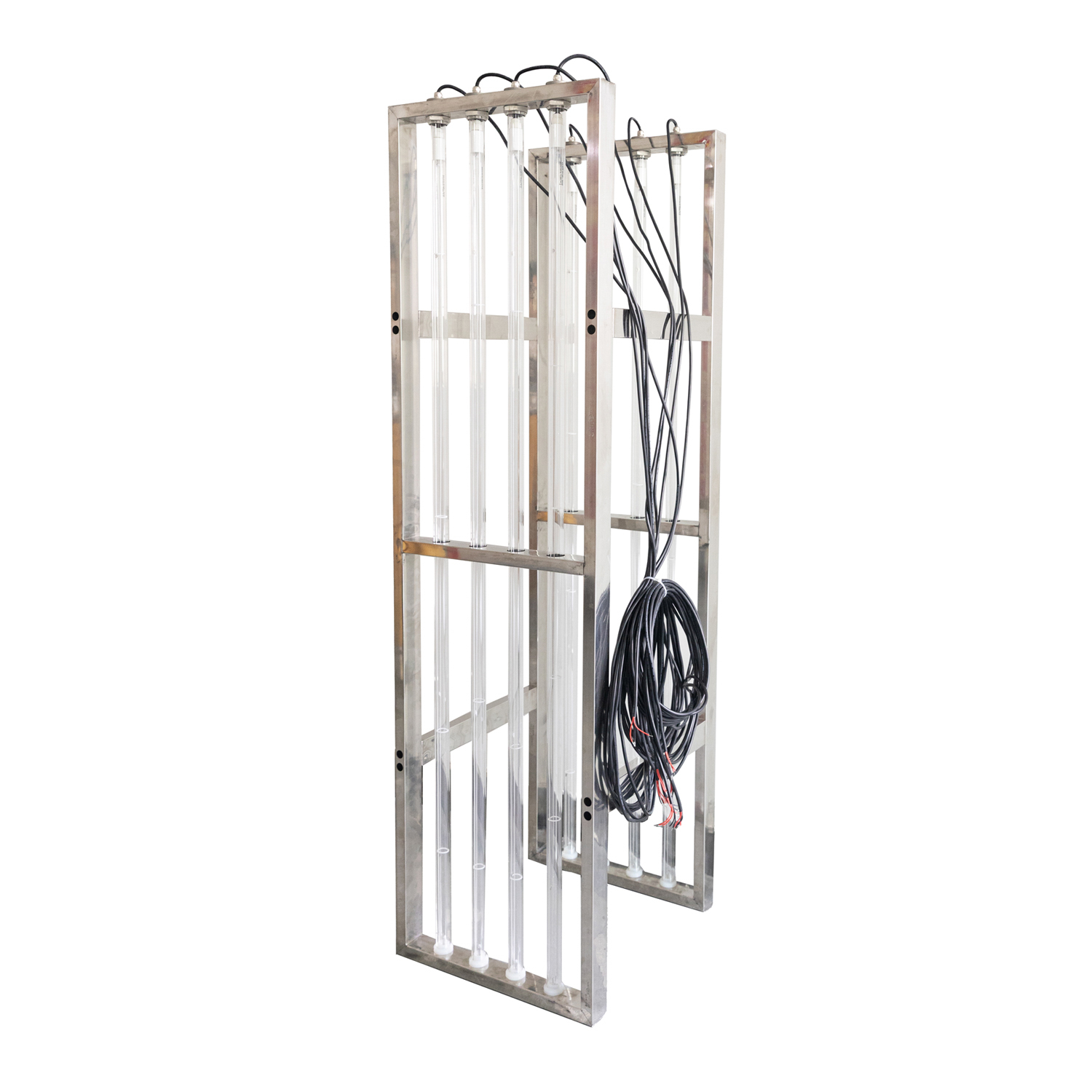

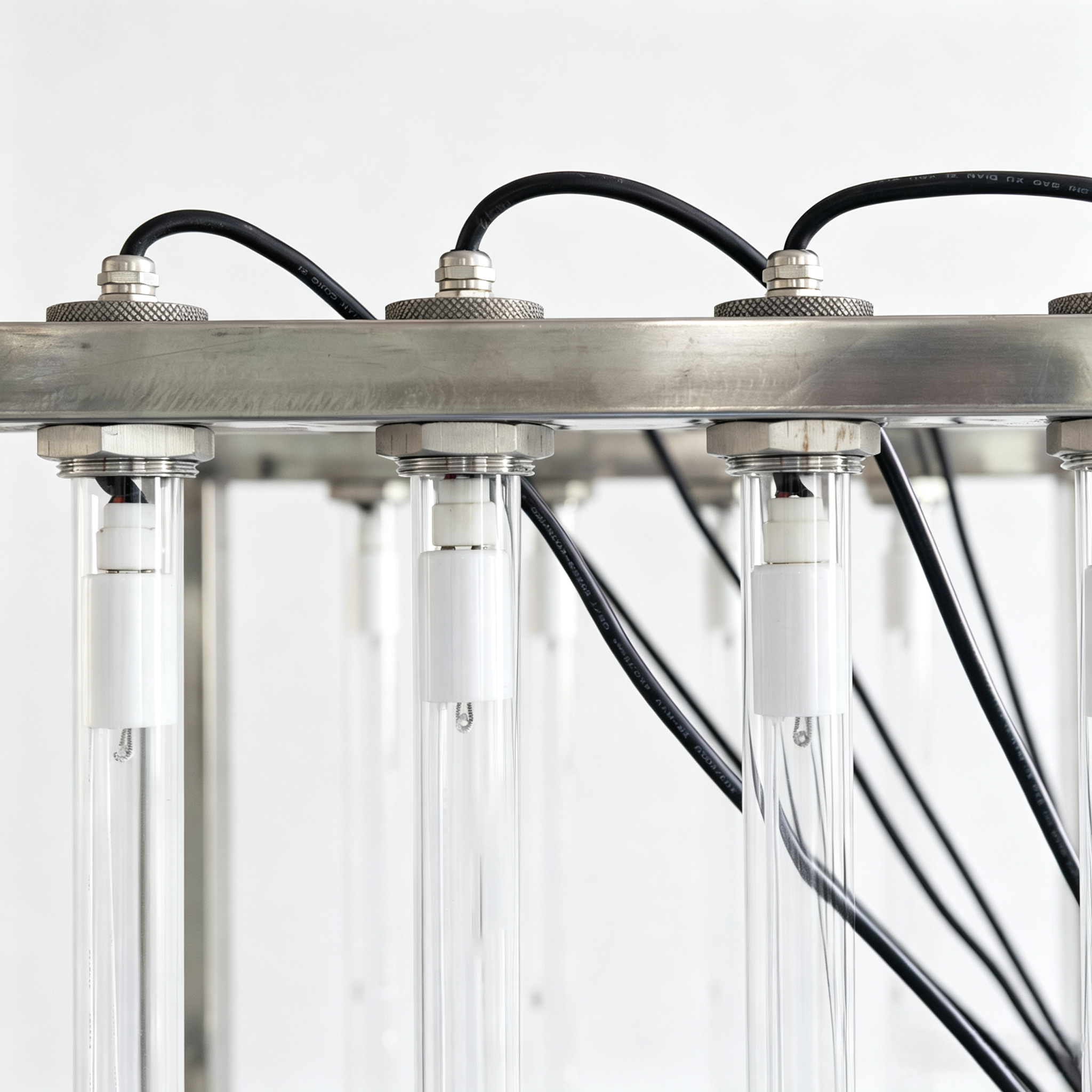

Open Channel UV Germicidal Sterilizer is a high-performance disinfection system designed for wastewater and open channel applications. It uses 254nm UVC lamps to effectively eliminate bacteria, viruses, and other microorganisms in flowing water without chemicals. Installed directly in channels, it allows continuous treatment with low energy consumption and minimal maintenance. The modular design supports different flow rates and installation requirements. Made with corrosion-resistant materials, it ensures stable operation in harsh environments. It is widely used in municipal wastewater treatment plants, industrial drainage systems, and environmental water purification projects.
1. High-Efficiency 254nm UVC Disinfection
This open channel UV sterilizer uses advanced 254nm UVC technology to achieve up to 99.9% microbial reduction in flowing water. It is widely applied in wastewater UV disinfection, open channel UV systems, and municipal water treatment, ensuring effective and chemical-free sterilization.
2. Modular Structure for Flexible Installation
The system features a modular design that can be customized according to channel width, depth, and flow rate. It adapts easily to different open channel water treatment systems and large-scale industrial UV disinfection projects, offering high flexibility and scalability.
3. Durable & Corrosion-Resistant Materials
Constructed with high-quality stainless steel and UV-resistant components, this UV wastewater treatment system ensures long-term durability. It performs reliably in harsh environments such as sewage plants and industrial drainage, supporting stable UV sterilization performance.
4. Energy-Saving & Easy Maintenance
Designed for low power consumption, this UV disinfection system reduces operational costs while maintaining strong output. The open channel structure allows easy access for lamp replacement and cleaning, improving efficiency in municipal wastewater UV systems.
5. Reliable Performance for Continuous Operation
Engineered for 24/7 use, this open channel UV sterilizer delivers consistent and stable output in high-flow conditions. It is ideal for industrial wastewater treatment, environmental projects, and large-scale UV water disinfection solutions.
① Grade A standard | ① Grade B standard |
|---|
Processing water volume (ton/day) | Total power of lamp tube (KW) | Number of Lamp Tubes (pcs) | Processing water volume (ton/day) | Total power of lamp tube (KW) | Number of Lamp Tubes (pcs) |
5000 | 7.68 | 320W×24 | 5000 | 5.12 | 320W×16 |
10000 | 10.24 | 320W×32 | 10000 | 7.68 | 320W×24 |
15000 | 15.36 | 320W×48 | 15000 | 10.24 | 320W×32 |
20000 | 20.48 | 320W×64 | 20000 | 15.36 | 320W×48 |
25000 | 25.6 | 320W×80 | 25000 | 17.92 | 320W×64 |
30000 | 30.72 | 320W×96 | 30000 | 23.04 | 320W×72 |
35000 | 35.84 | 320W×112 | 35000 | 25.6 | 320W×80 |
40000 | 40.96 | 320W×128 | 40000 | 30.72 | 320W×96 |
50000 | 51.2 | 320W×160 | 50000 | 38.4 | 320W×120 |
60000 | 61.44 | 320W×192 | 60000 | 46.08 | 320W×144 |
80000 | 81.92 | 320W×256 | 80000 | 61.44 | 320W×192 |
100000 | 102.4 | 320W×320 | 100000 | 76.8 | 320W×240 |
150000 | 153.6 | 320W×480 | 150000 | 115.2 | 320W×360 |
1. Municipal Wastewater Treatment Plants
This open channel UV sterilizer is widely used in municipal wastewater facilities to disinfect effluent before discharge. It effectively reduces bacteria and viruses, helping meet environmental regulations. Ideal for municipal wastewater UV disinfection and large-scale open channel water treatment systems.
2. Industrial Effluent Treatment
In industrial applications, this UV wastewater treatment system is used to treat discharged water from factories. It helps remove harmful microorganisms in chemical, textile, and food industries, ensuring safer water release and supporting industrial UV disinfection solutions.
3. Surface Water & River Treatment
Suitable for environmental projects, this open channel UV system is applied in river and surface water purification. It helps improve water quality by reducing microbial contamination, supporting eco-friendly UV water treatment applications.
4. Reclaimed Water Reuse Systems
This UV disinfection system is ideal for water reuse projects, ensuring treated wastewater is safe for irrigation or industrial reuse. It provides reliable performance in reclaimed water UV sterilization systems.
5. Stormwater & Drainage Channels
Used in drainage systems, this open channel UV sterilizer helps disinfect stormwater before it enters natural water bodies. It supports environmental protection and improves overall water disinfection efficiency.
1. How does the open channel UV sterilizer work?
It uses 254nm UVC light to disinfect flowing water by destroying microorganisms’ DNA. Installed directly in channels, it treats wastewater continuously, achieving up to 99.9% sterilization efficiency in open channel UV disinfection systems.
2. Is it suitable for large flow rates?
Yes, the modular design allows it to handle high flow capacities. It can be customized based on channel size and flow rate, making it ideal for municipal wastewater treatment and industrial UV sterilization applications.
3. Does it require chemicals?
No, UV disinfection is a chemical-free process. This UV wastewater treatment system ensures safe water treatment without affecting water quality, odor, or composition.
4. What maintenance is required?
Maintenance is simple. Regular cleaning of quartz sleeves and periodic lamp replacement help maintain stable UV output and ensure efficient operation in UV water disinfection systems.
5. Can it operate continuously?
Yes, it is designed for 24/7 operation in demanding environments. The system provides stable and reliable performance in open channel water treatment applications.
