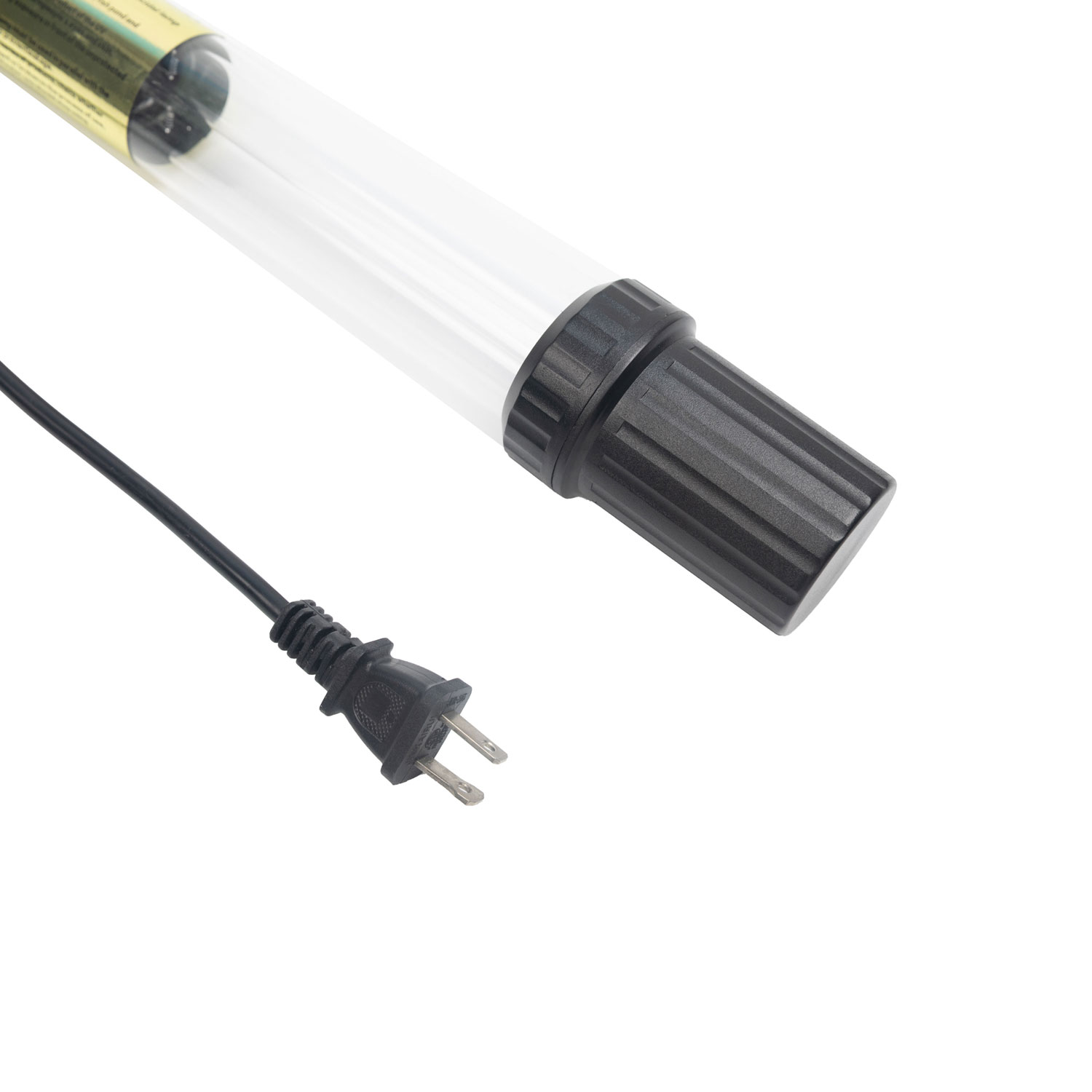

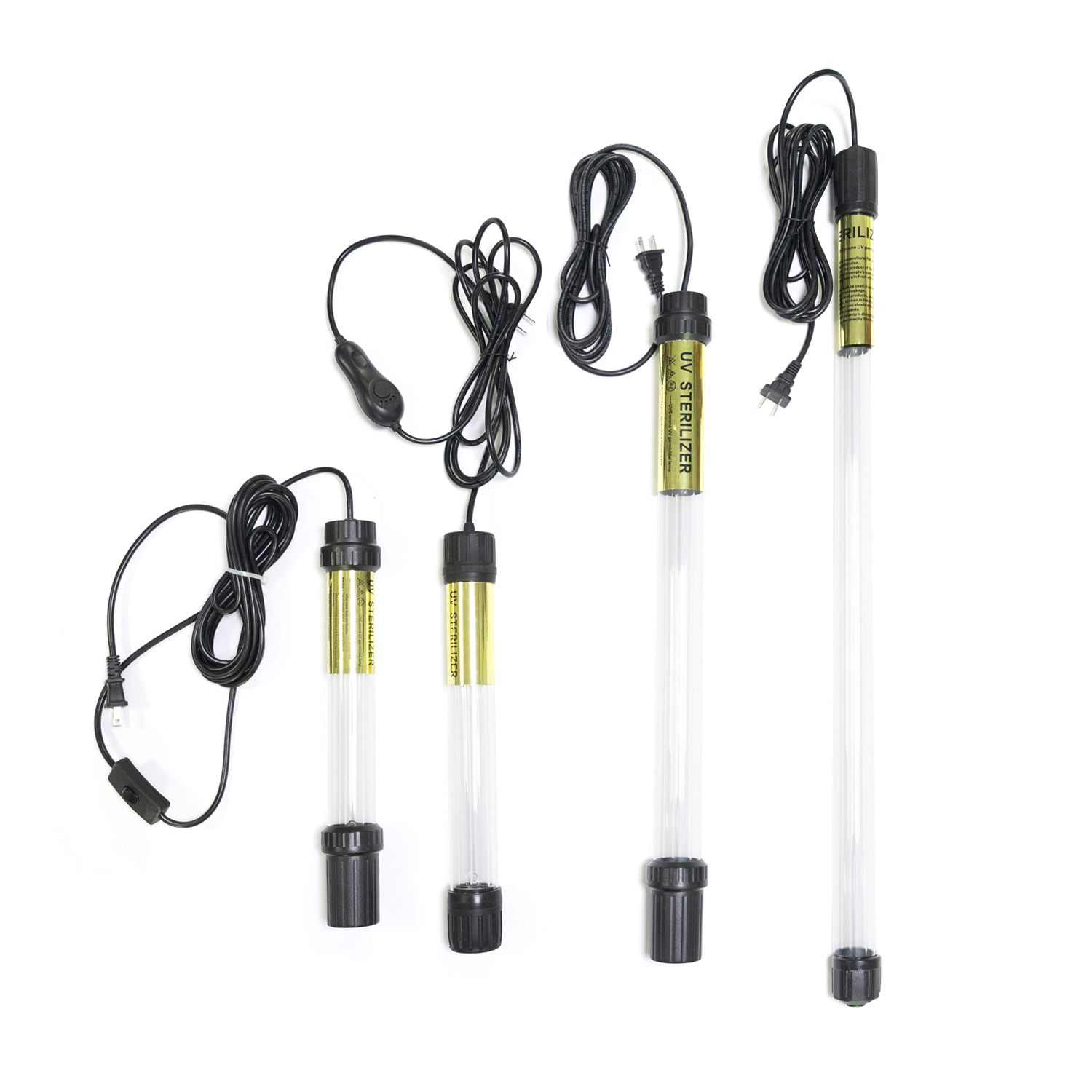

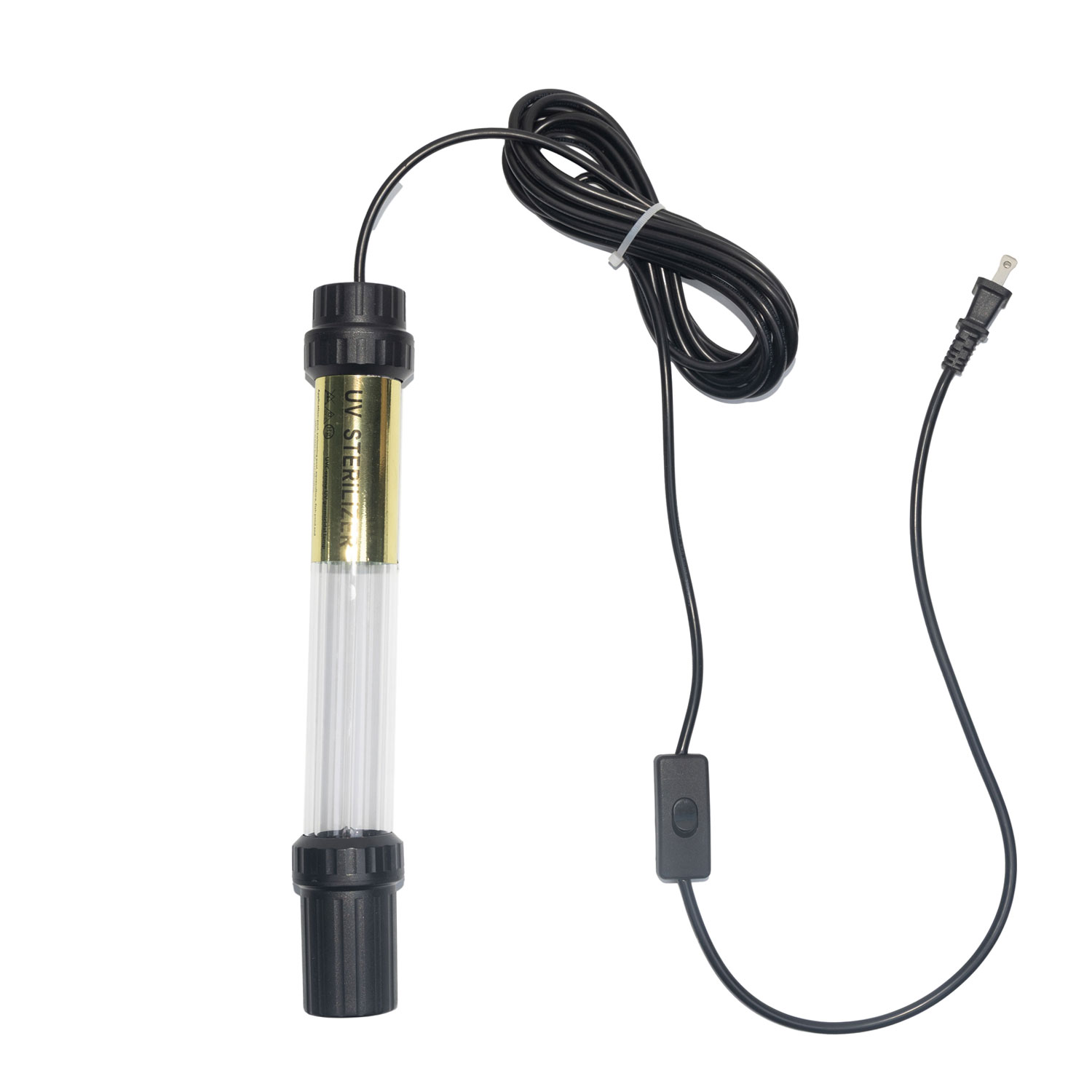

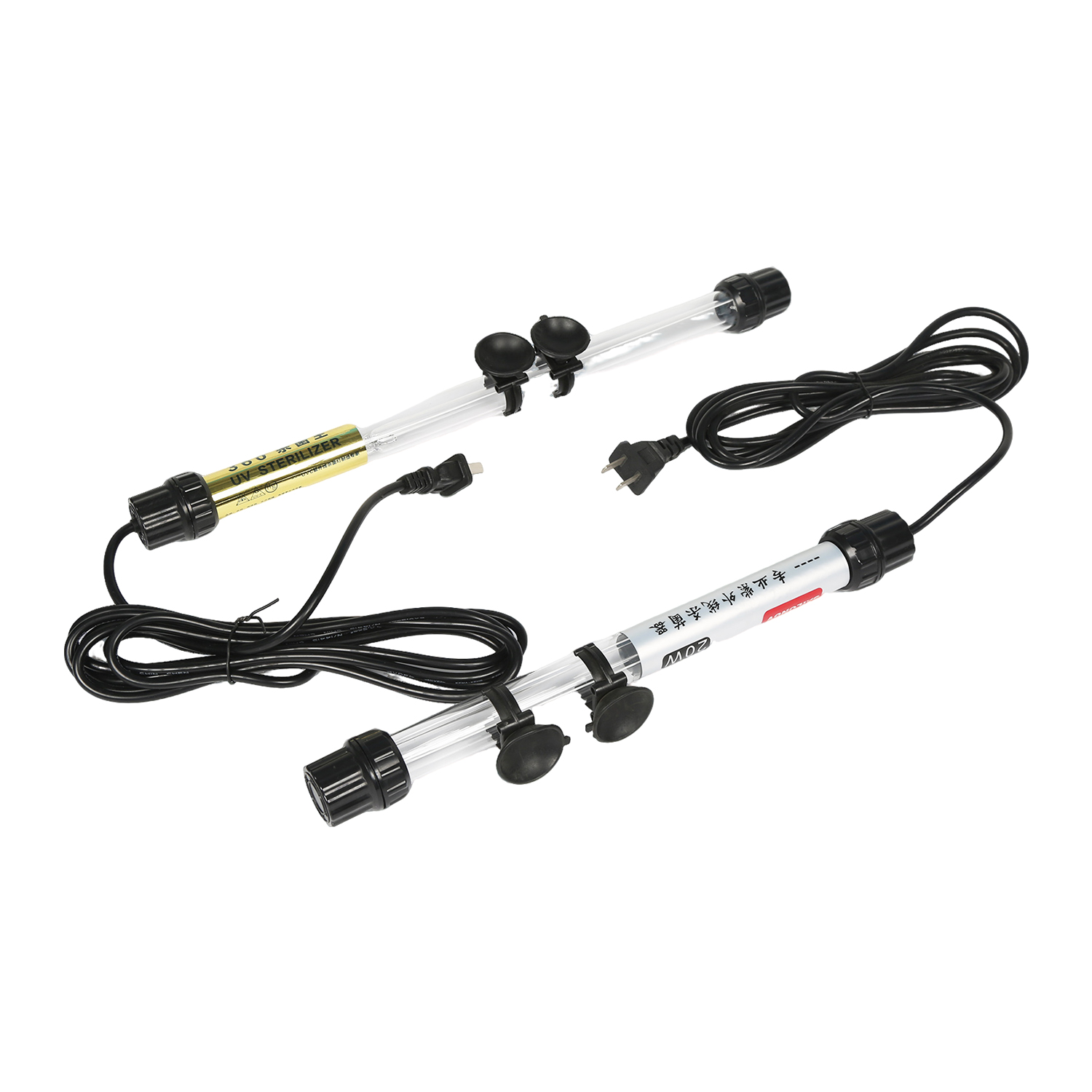

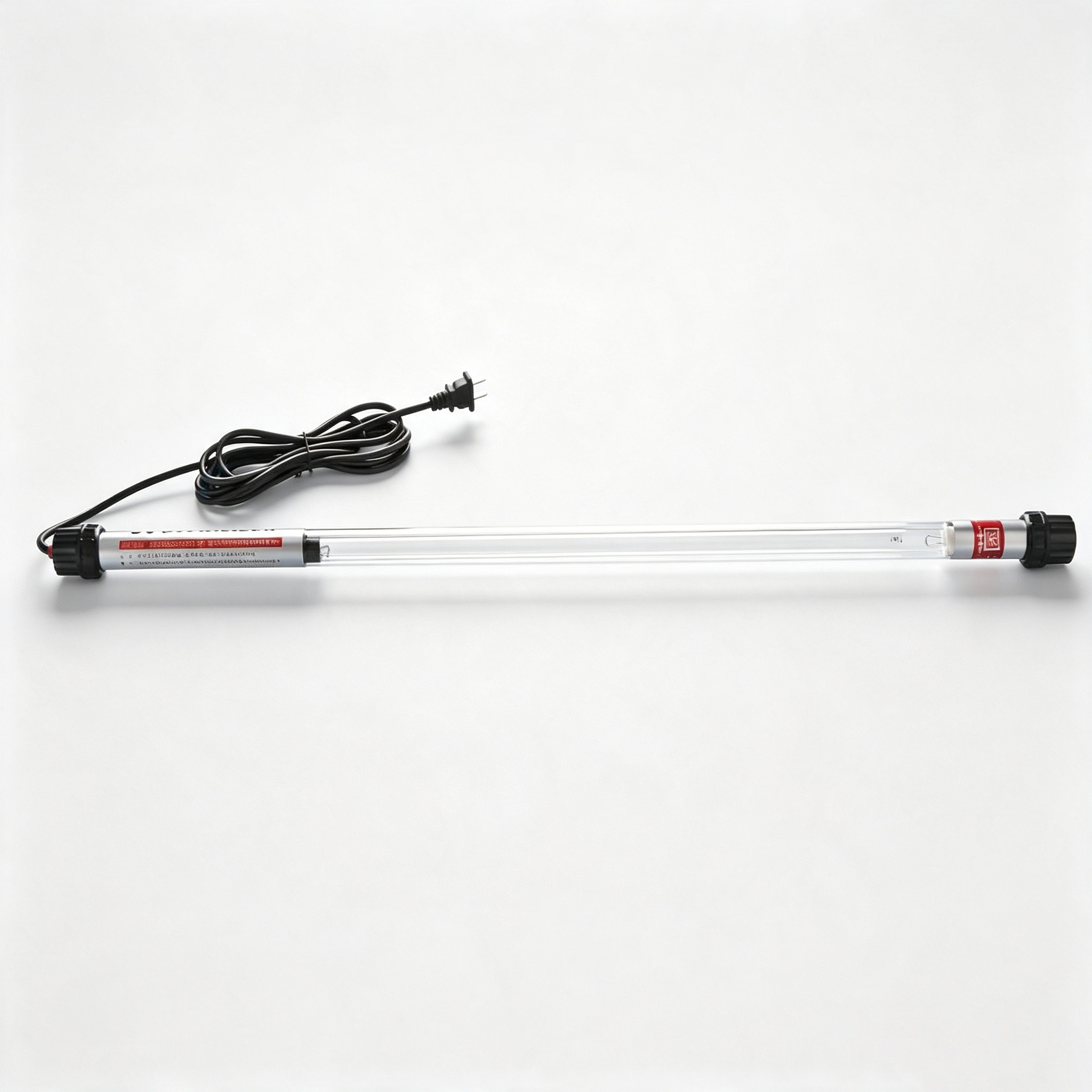

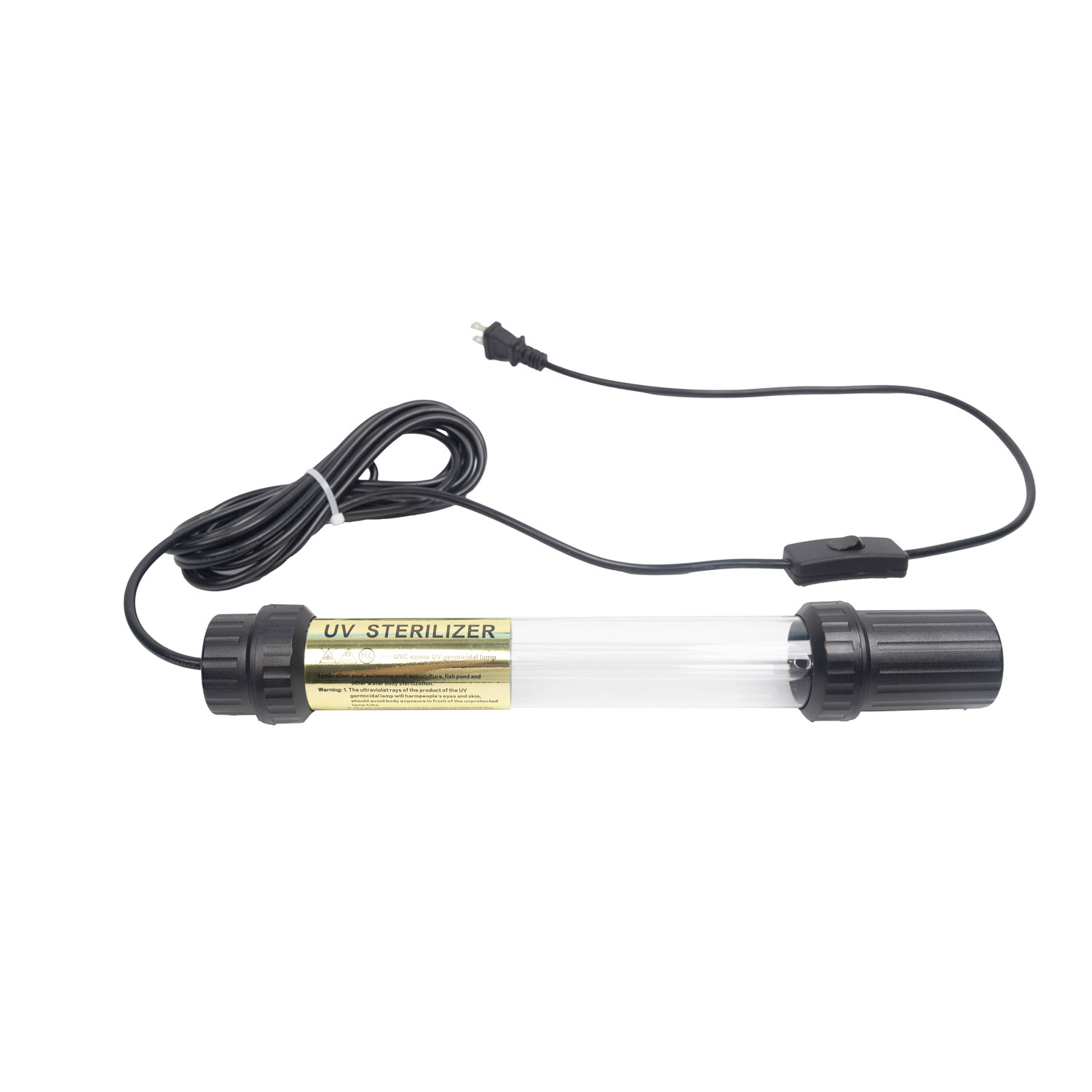

Built-in Ballast Submersible UVC Lamp for Water Treatment

The Built-in Ballast Submersible UVC Lamp (Dive Type) represents a highly efficient and self-contained solution engineered for direct water disinfection. Operating at a precise 254nm ultraviolet wavelength, this unit effectively neutralizes bacteria, viruses, and stubborn algae blooms, restoring clarity and biological safety to aquatic environments. Unlike traditional setups requiring external power regulation, this model features an advanced integrated electronic ballast, streamlining installation and significantly reducing the physical footprint. Procurement teams can select between ozone-free configurations for sensitive aquaculture and ozone-generating models for aggressive industrial water treatment, ensuring exact matching to operational requirements. Manufactured under strict ISO9001 quality control protocols and carrying CE and EPA compliance, this ultraviolet sterilizer delivers verifiable reliability. The robust construction guarantees a prolonged operational lifespan of 9,000 to 10,000 hours, minimizing replacement frequency and reducing long-term maintenance overhead. We also accommodate comprehensive OEM and ODM requests, allowing for customized lengths, wattages, and interface bases (such as G5 or G13) to integrate flawlessly into existing filtration arrays.

1. High-Efficiency 254nm UVC Disinfection

Harnessing the precise 254nm wavelength, this submersible UV lamp disrupts the DNA and RNA of microorganisms, achieving an impressive sterilization efficiency of up to 99.9%. By directly targeting bacteria, harmful viruses, and suspended algae, it prevents biological fouling in aquatic systems. This chemical-free approach ensures that the treated water remains safe, unaltered in taste or composition, and perfectly balanced for sensitive ecological or industrial processes.

2. Advanced Waterproofing with Double-Layer Silicone Seal

Operating submerged requires absolute structural integrity. This unit utilizes a proprietary double-layer silicone sealing process that guarantees zero water ingress even during continuous, long-term underwater deployment. The fully integrated waterproof housing eliminates the need for bulky external protective sleeves, simplifying the mounting process while drastically enhancing electrical safety in complex, turbulent water bodies.

3. Thickened High-Purity Quartz Tube

Constructed from upgraded 17mm thickened high-purity quartz, the lamp achieves a superior ultraviolet transmission rate exceeding 90%. This premium material not only withstands substantial water pressure but also concentrates the UV output, delivering a higher power density and a measurable, intense ultraviolet radiation strength (μw/cm²). The result is a deeper penetration of UV light through the water column, ensuring thorough purification.

4. Integrated Electronic Ballast & Wide Voltage Stability

Unlike conventional lamps, this model incorporates a highly efficient built-in electronic ballast designed to handle wide voltage fluctuations (180V-235V). This internal regulation stabilizes the electrical draw, preventing flickering and protecting the filament from power surges. Consequently, the system boasts a significantly reduced failure rate and an extended operational lifespan of 9,000 to 10,000 hours, driving down overall energy consumption and maintenance labor.

5. Extreme Temperature Resilience and Versatility

Engineered to perform in demanding environments, the lamp exhibits exceptional thermal stability, operating flawlessly in water temperatures ranging from a freezing -10°C up to a boiling 100°C. This extraordinary temperature resistance prevents light degradation in extreme industrial water treatment scenarios. Its compact footprint allows it to be seamlessly retrofitted into tight filter boxes, holding tanks, or commercial purification skids.

• Commercial and Residential Aquariums: Deployed directly in filtration sumps, the lamp continuously irradiates circulating water, neutralizing harmful pathogens and floating algae spores. This creates a visually pristine and biologically secure habitat, significantly reducing fish morbidity and the need for frequent manual tank scrubbing.

• Pond & Garden Water Systems: Outdoor water bodies are highly susceptible to algae blooms due to sunlight exposure. This submersible unit effectively controls green water and microbial overgrowth, restoring crystal-clear aesthetics to koi ponds and botanical garden water features without relying on harsh algaecides.

• Intensive Aquaculture Facilities: In high-density fish and shrimp farming, maintaining optimal water quality is critical. The UV sterilizer drastically lowers the pathogen load in the water column, preventing disease outbreaks, supporting healthier livestock growth rates, and ensuring stable, predictable yields for operators.

• Small-Scale Industrial Water Treatment: Ideal for compact purification setups, cooling towers, and localized wastewater recovery systems. It delivers rapid, chemical-free disinfection, ensuring that process water meets stringent hygiene standards while avoiding the storage and handling of hazardous chemical disinfectants.

• Decorative Fountains and Landscapes: Public and private water features often suffer from slime and biofilm buildup. By integrating this UV lamp into the circulation loop, facility managers can prevent microbial proliferation, keeping the water visually appealing and eliminating unpleasant biological odors.

1. Can the built-in ballast UV lamp be fully submerged during operation?

Absolutely. This integrated submersible UV lamp is engineered with a proprietary double-layer silicone sealed waterproof structure, specifically designed for safe, continuous underwater use. As long as the unit is installed according to the provided guidelines, it will operate directly and securely within aquariums, outdoor ponds, and industrial holding tanks without the risk of electrical leakage.

2. What is the expected operational lifespan of this sterilization unit?

Thanks to the stabilized power delivery from the built-in electronic ballast and the premium tungsten filaments, the lamp boasts an extended lifespan of approximately 9,000 to 10,000 hours. To maintain maximum sterilization efficacy, we recommend replacing the unit once the ultraviolet radiation intensity naturally depreciates near the end of this lifecycle.

3. Is the ultraviolet radiation safe for fish and other aquatic organisms?

Yes, it is entirely safe when properly configured. The UVC light targets and disinfects the water passing through its radiation zone without altering the water's chemistry or leaving any residual byproducts. Provided the lamp is placed in a sump, filter box, or shielded chamber where aquatic life is not exposed to direct optical radiation, your livestock will thrive in the purified environment.

4. What level of maintenance is required for optimal performance?

The system is designed for low-maintenance operation. The primary requirement is the periodic cleaning of the 17mm thickened quartz glass surface. Removing accumulated mineral deposits or organic biofilm ensures that the UV transmission remains above 90%, allowing the lamp to deliver its full, stable UV output consistently.

5. Are customization options available for specific water treatment setups?

Yes. In addition to being highly suitable for standard aquariums, ponds, and aquaculture systems, we offer comprehensive OEM and ODM services. Sourcing professionals can request specific wattages, lengths, ozone-generating capabilities, and custom interface bases (such as G5 or G13) to ensure seamless integration into specialized commercial water disinfection arrays.
